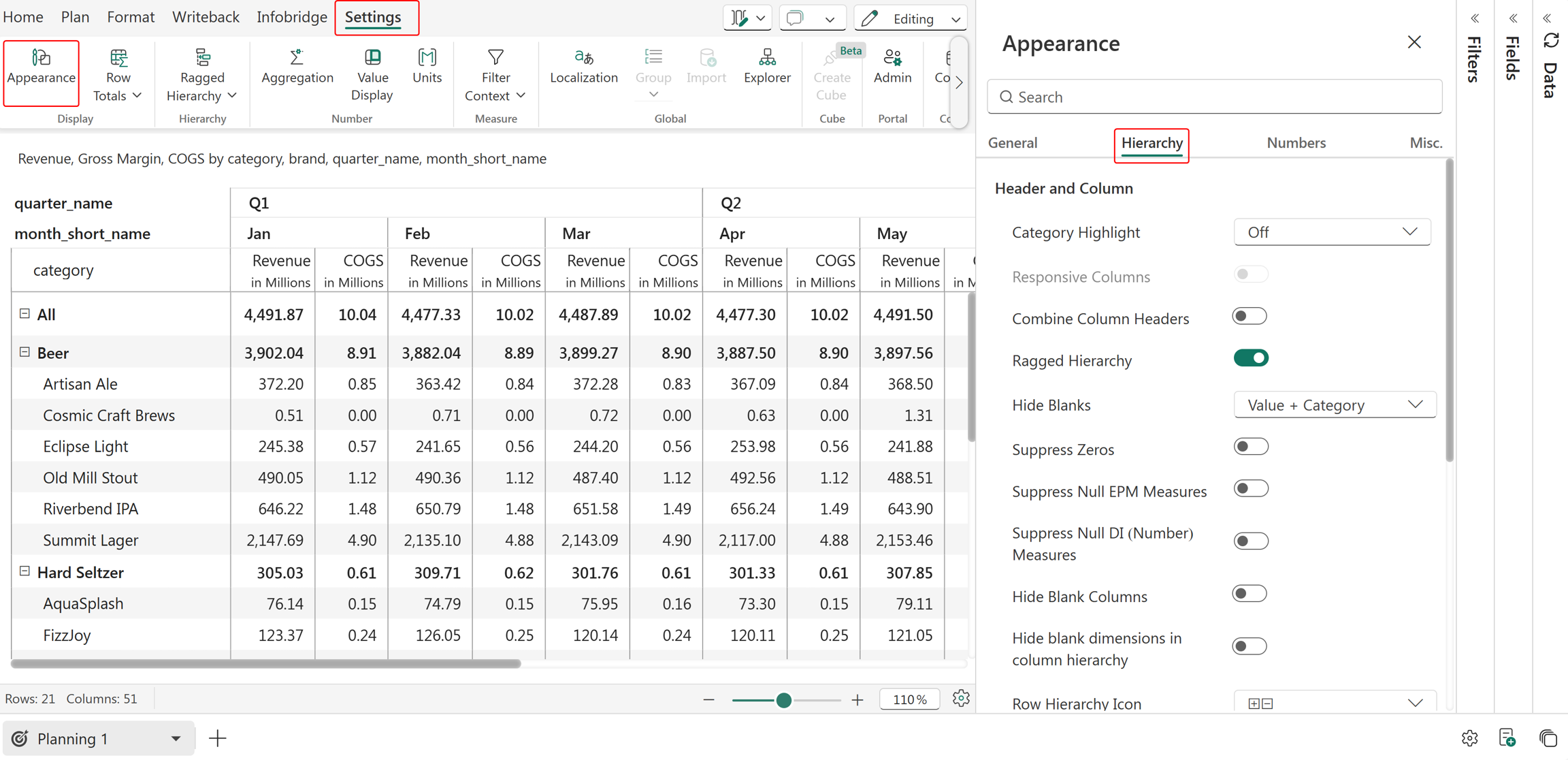

# Hierarchy settings In the Plan toolbar, navigate to **Settings > Appearance** to open the settings side panel. Click the **Hierarchy** tab in this panel to view the hierarchy settings.

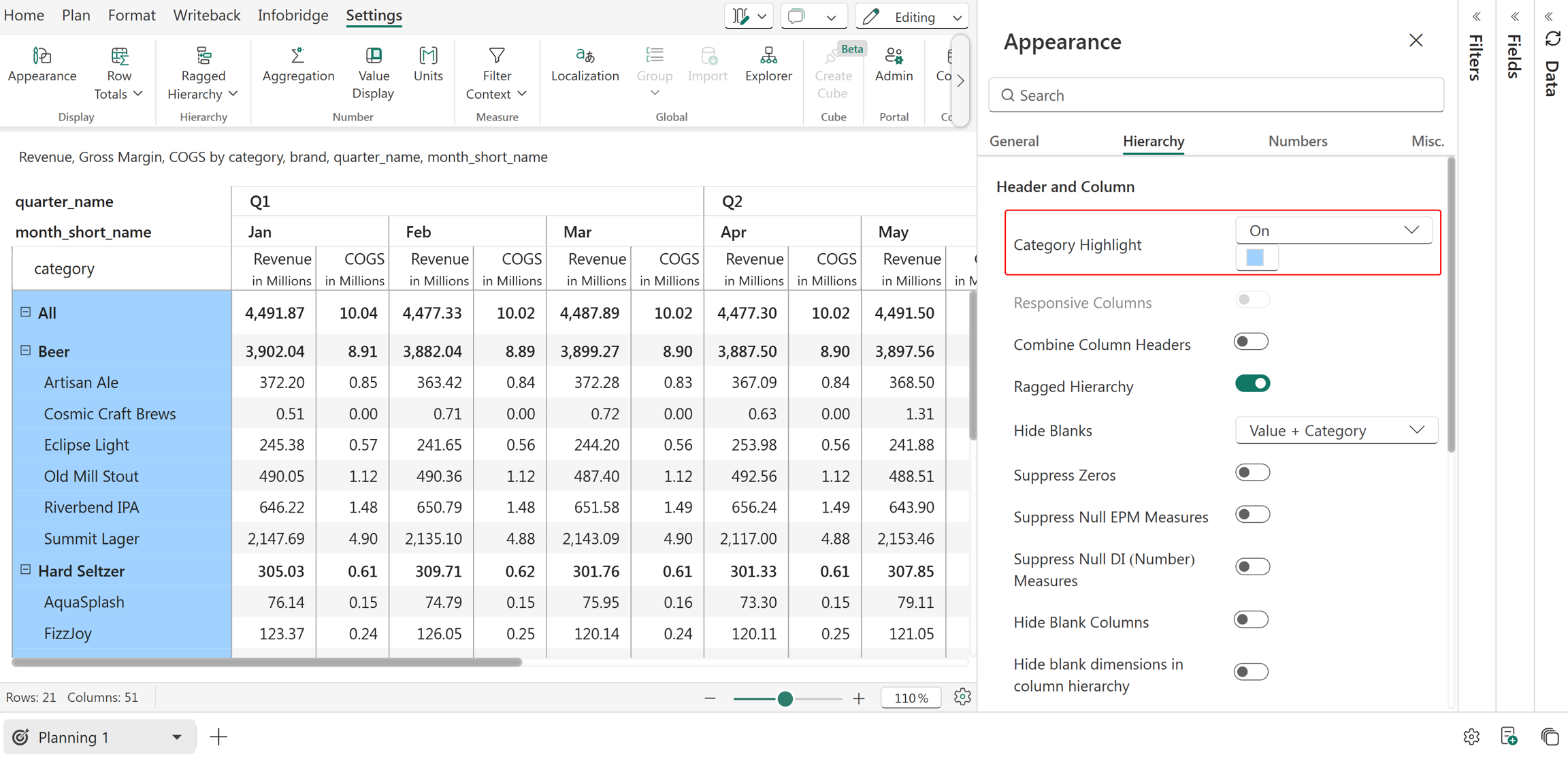

Let's explore the options to customize hierarchies in your reports. ### 1. Header and Column #### 1.1. Category highlight This drop-down lets you show or hide the category highlight. This option is set to **Off** by default. When this option is enabled, a color picker is displayed. You can select a color to highlight the category hierarchy.

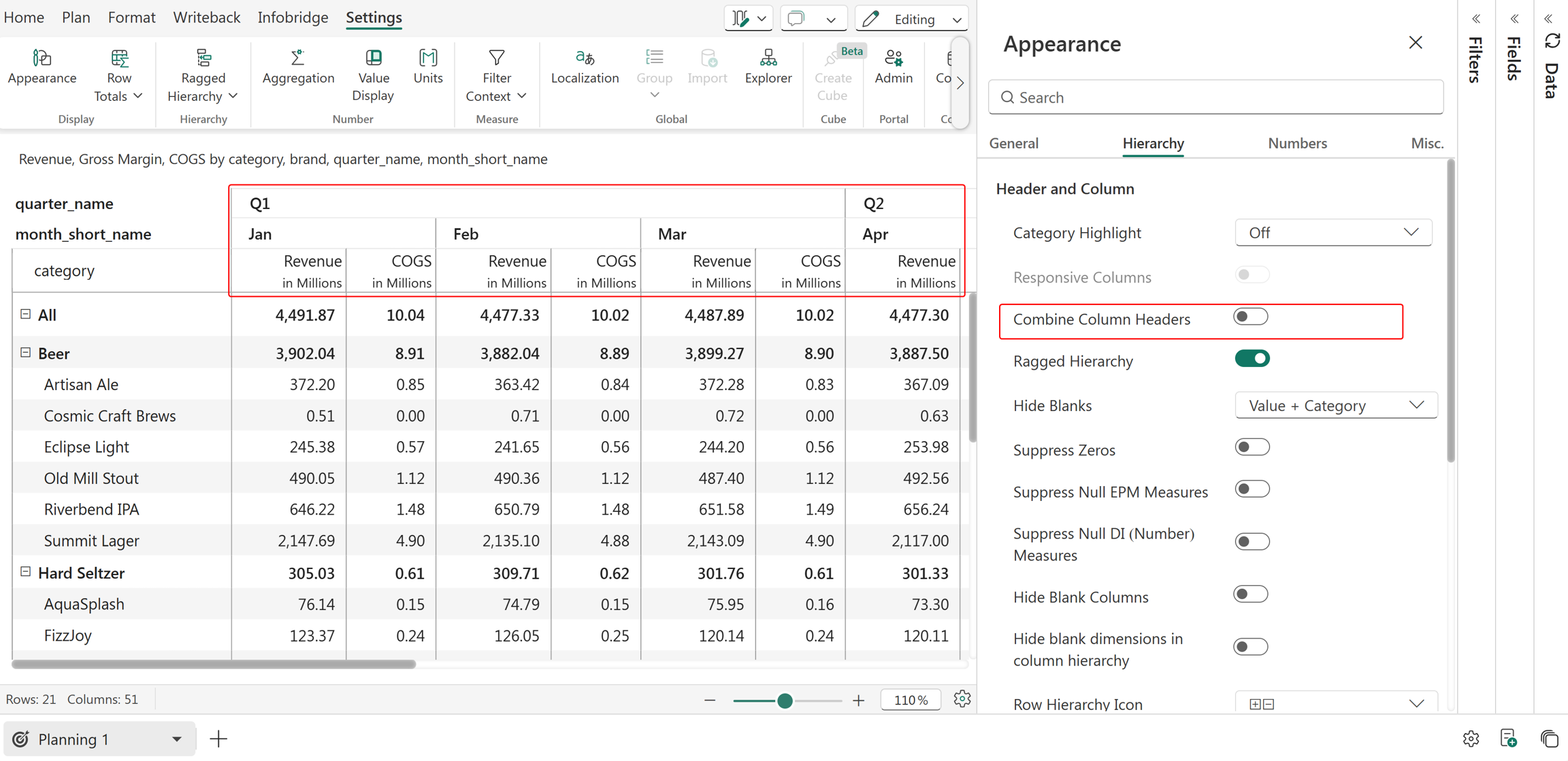

#### 1.2. Responsive columns If this option is enabled, when the report canvas is resized to a small size, only columns that fit into the canvas will be displayed and others will be hidden. #### 1.3. Combine column headers Enabling this option will combine the column headers and measure labels to display compact headers. As you can see from the below image, when this option is turned off, the column headers and measure labels are displayed separately.

When this option is enabled, the column headers and measure labels are combined and displayed compactly.

#### Column header separator When the **Combine Column Headers** option is enabled, this option lets you specify the type of separator that will get inserted between the column header and the measure label.

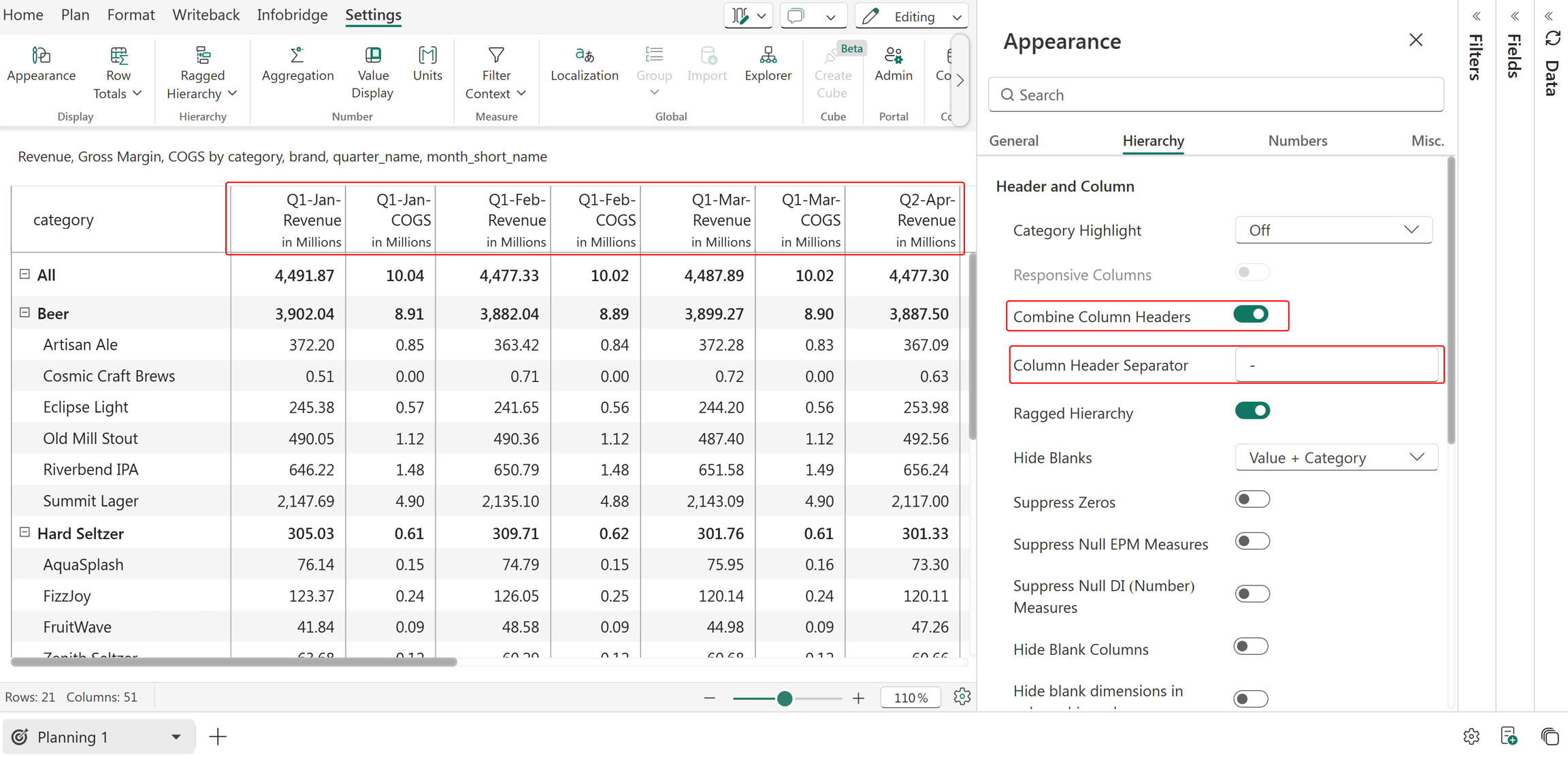

Combine column headers is enabled with the separator -

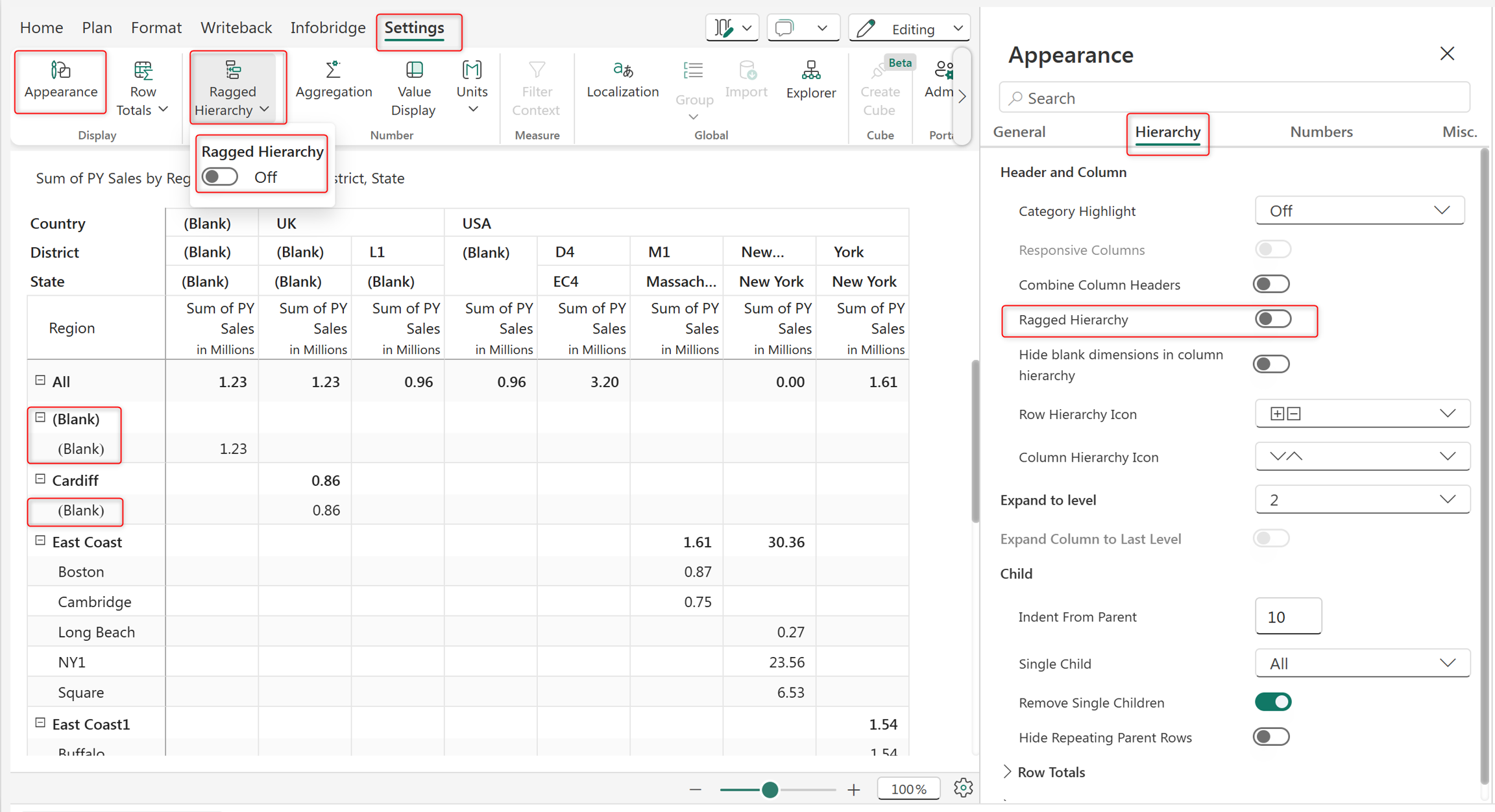

{% hint style="warning" %} If the **Combine column headers** option is enabled, you won't be able to reorder the columns. {% endhint %} #### 1.4. Ragged hierarchy In the case of ragged/unbalanced hierarchies where the number of levels is uneven, you can hide the blank category rows. This option can be enabled from **Settings** > **Ragged Hierarchy** or from **Settings** > **Appearance** > **Hierarchy** > **Ragged Hierarchy.**

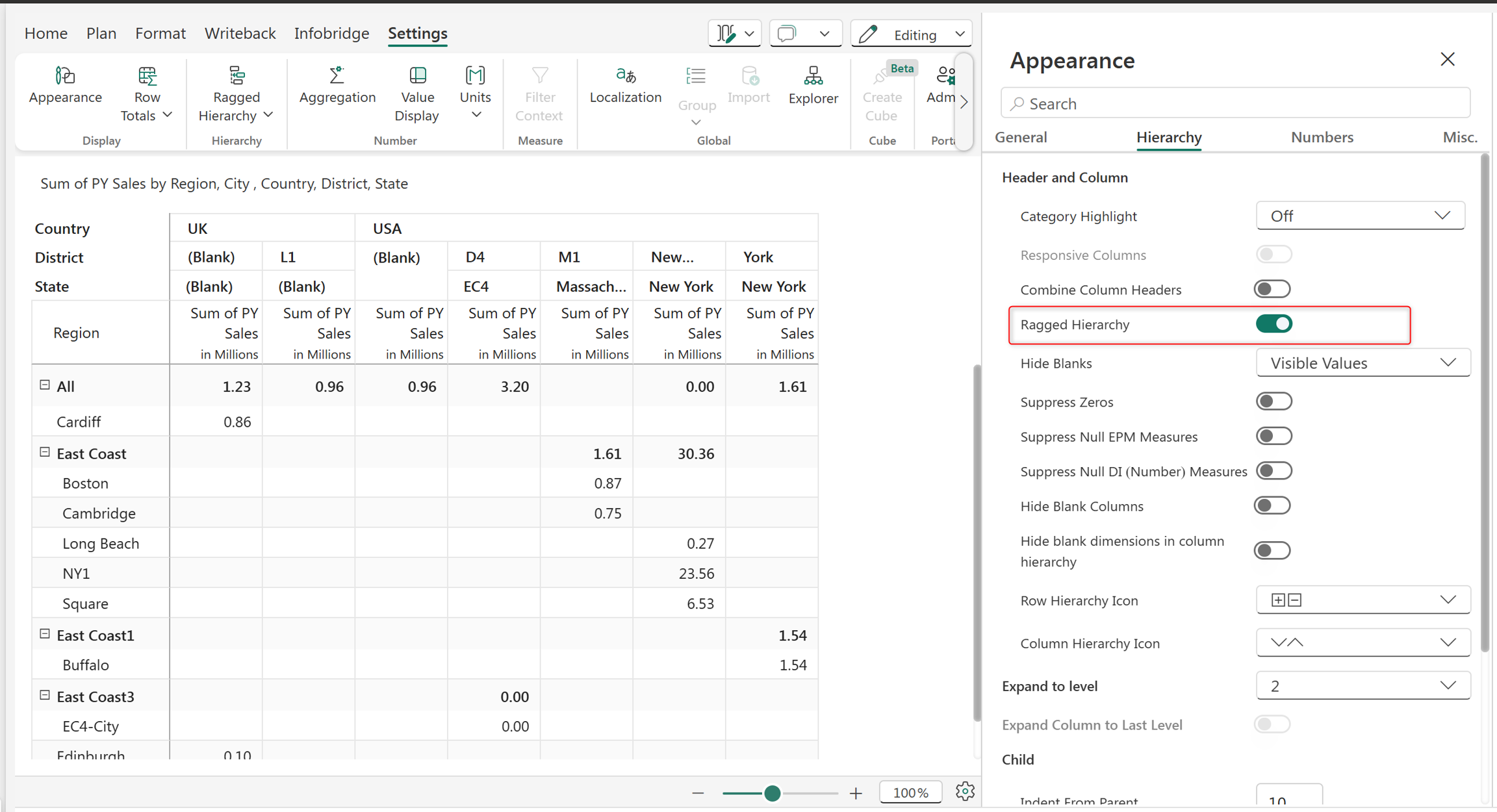

Notice how the blank categories have been hidden after enabling the **Ragged Hierarchy** option.

Enabled Ragged hierarchy with sub-options

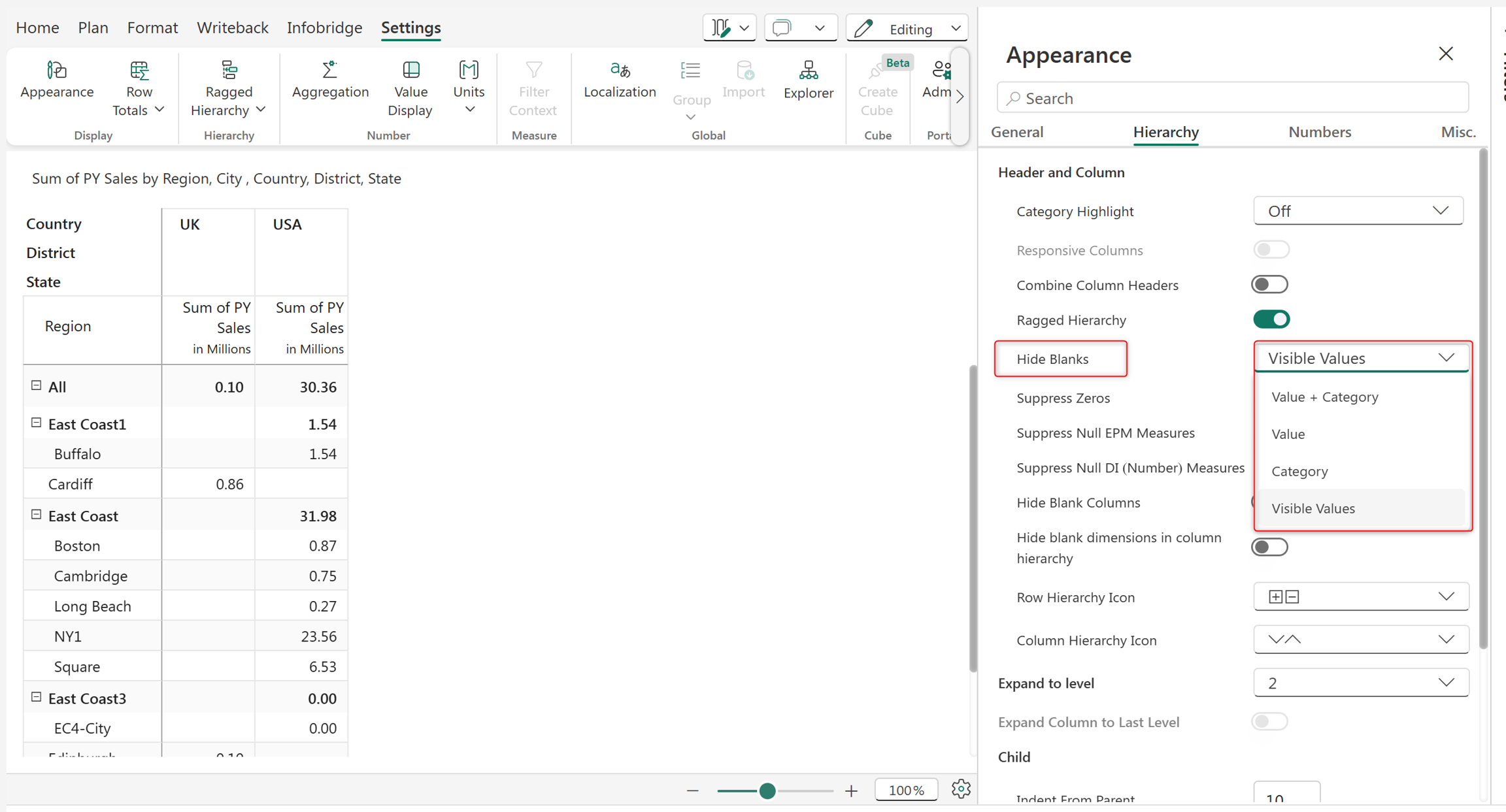

On enabling ragged hierarchy, additional options are displayed. #### **1.4.1. Hide blanks** Using this option, you can choose to hide the rows if the category is blank, the visible values are blank, the values are blank, or both the value and category are blank.

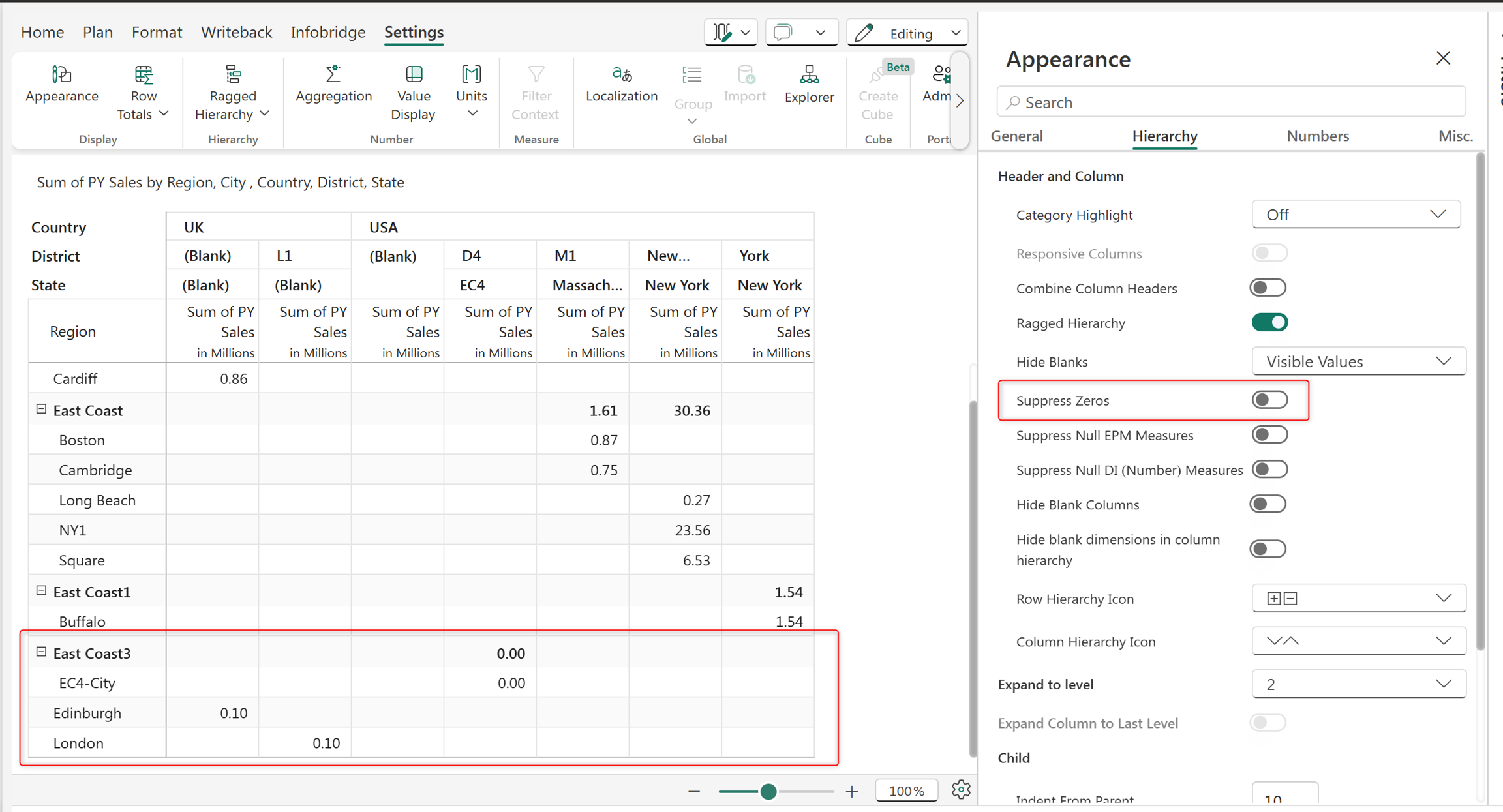

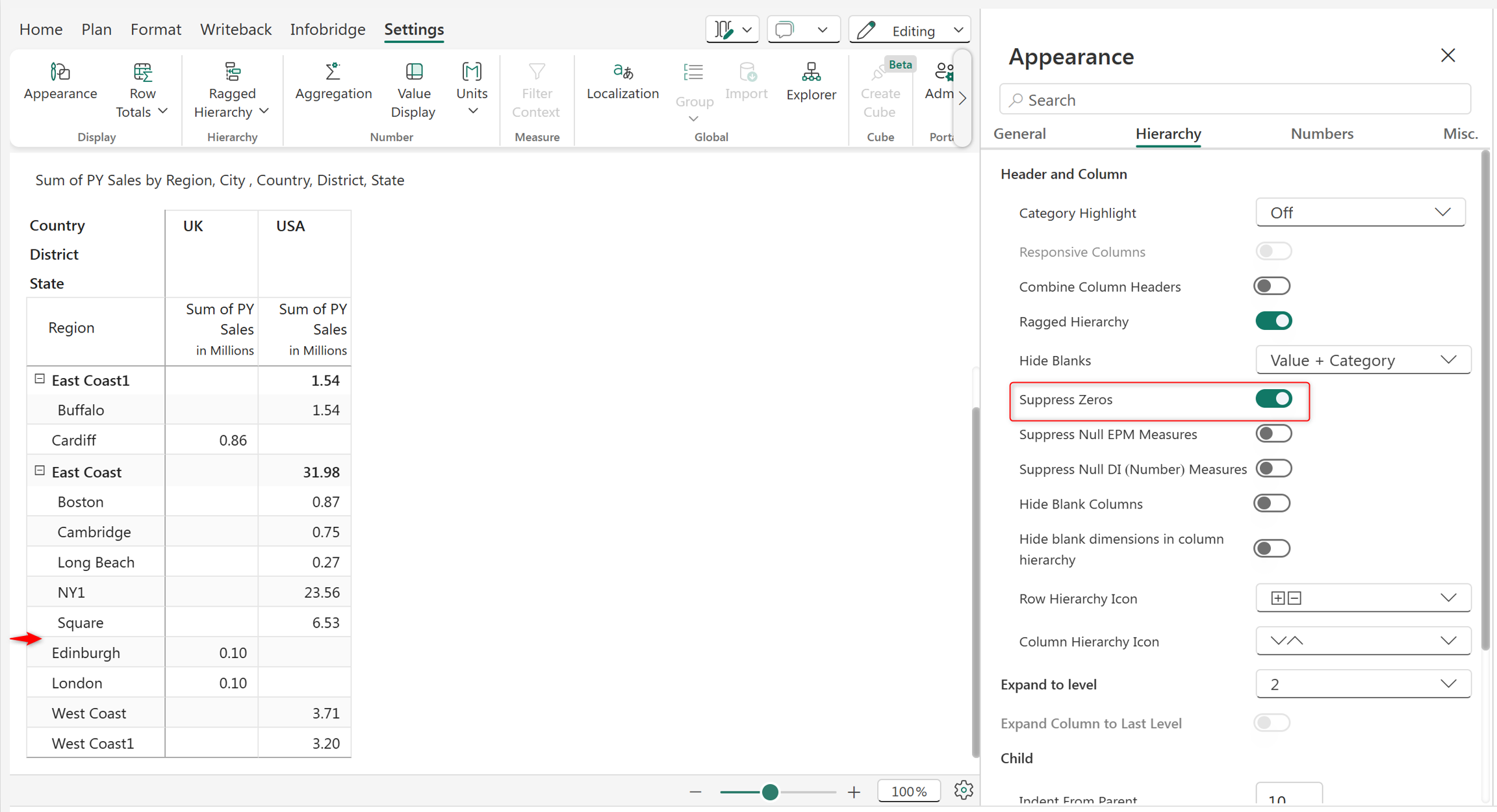

{% hint style="info" %} Visible values suppress all the blank Categories and Values that are currently visible on the report. {% endhint %} #### 1.4.2. Suppress zeros If you enable this option, then the rows containing zeros will be suppressed.

Rows containing Zeroes are suppressed when Suppress Zeroes Enabled.

#### **1.4.3. Suppress null data input measures** Data input measures with no assigned values offer no meaningful contribution to reports. You can opt to suppress them by enabling the Suppress Null DI (Number) Measures option in Display Settings.

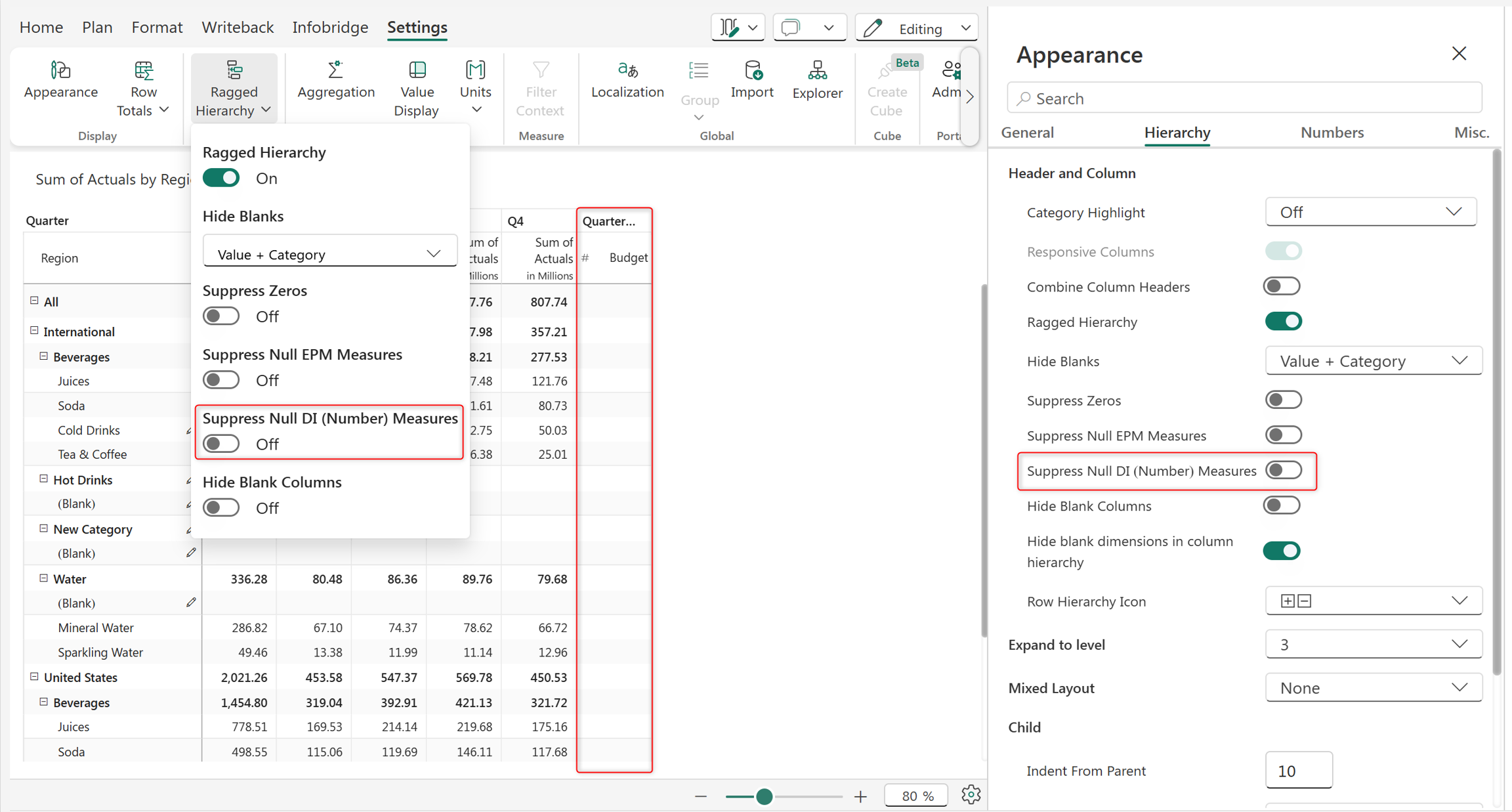

The budget column is visible when the 'Suppress null data input' option is disabled.

In this sample report, budget has not been allocated. We can hide this column by enabling the suppress null option for data input measures.

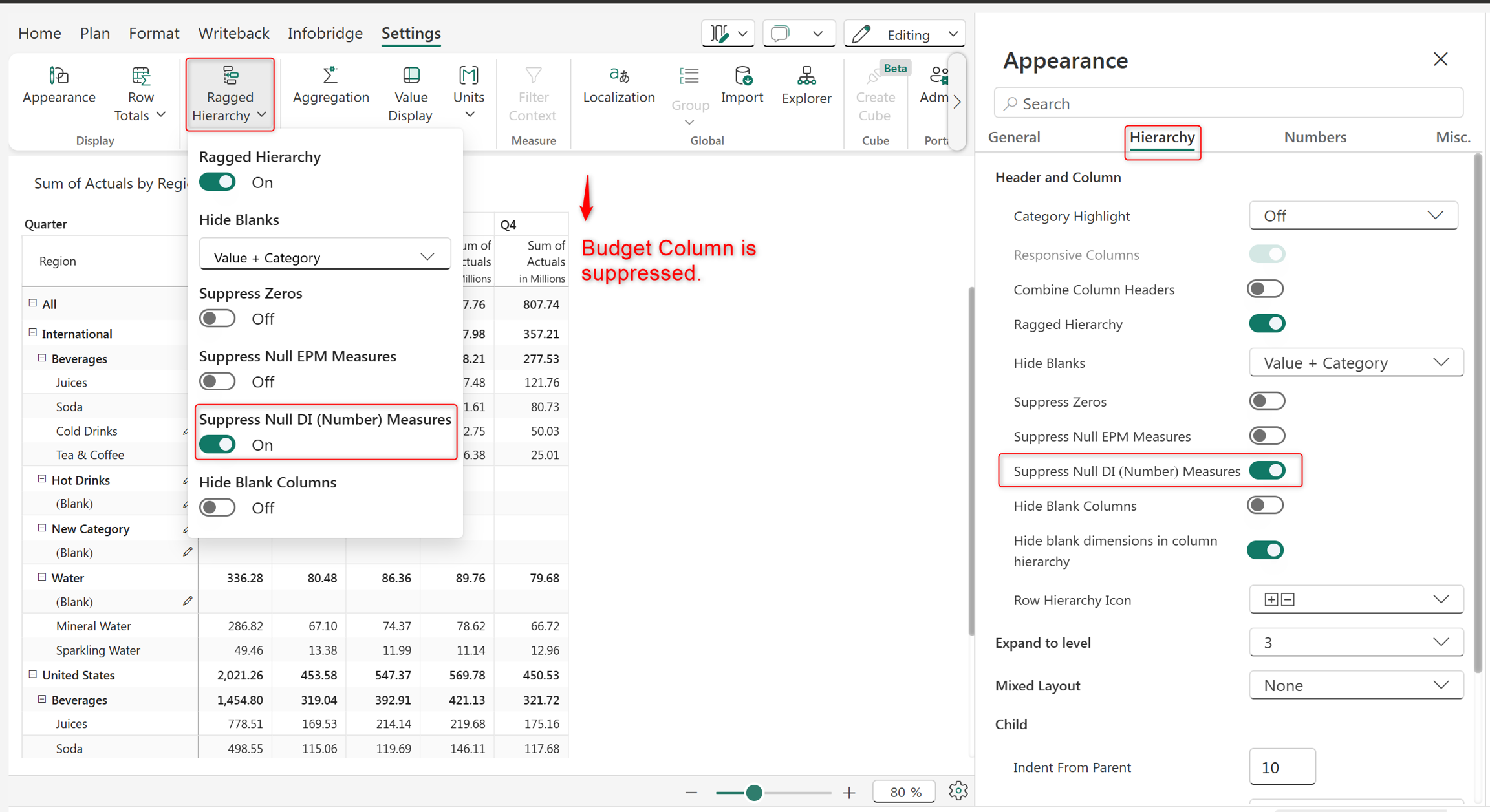

Null data input measure- 'Budget' has been suppressed

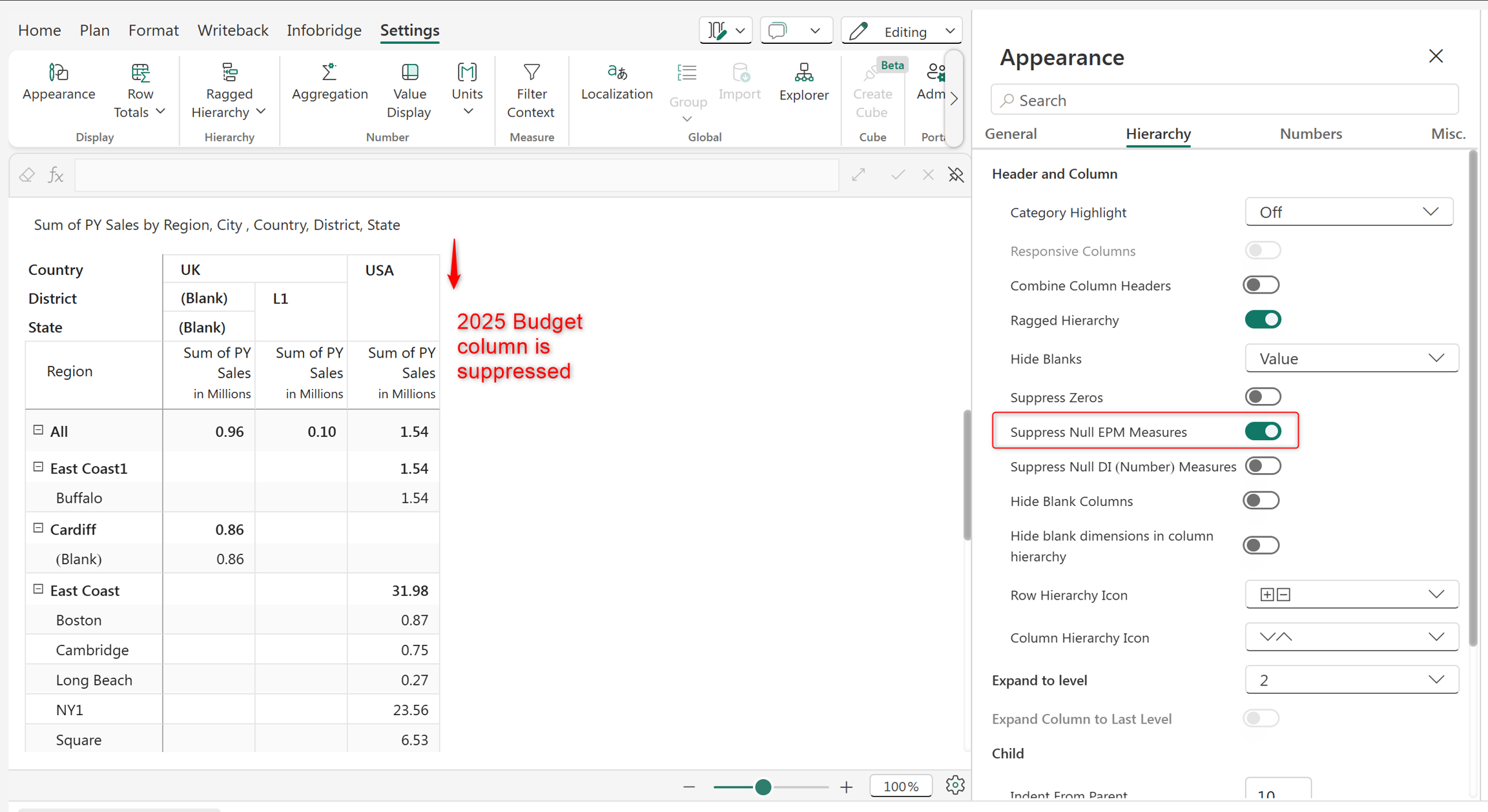

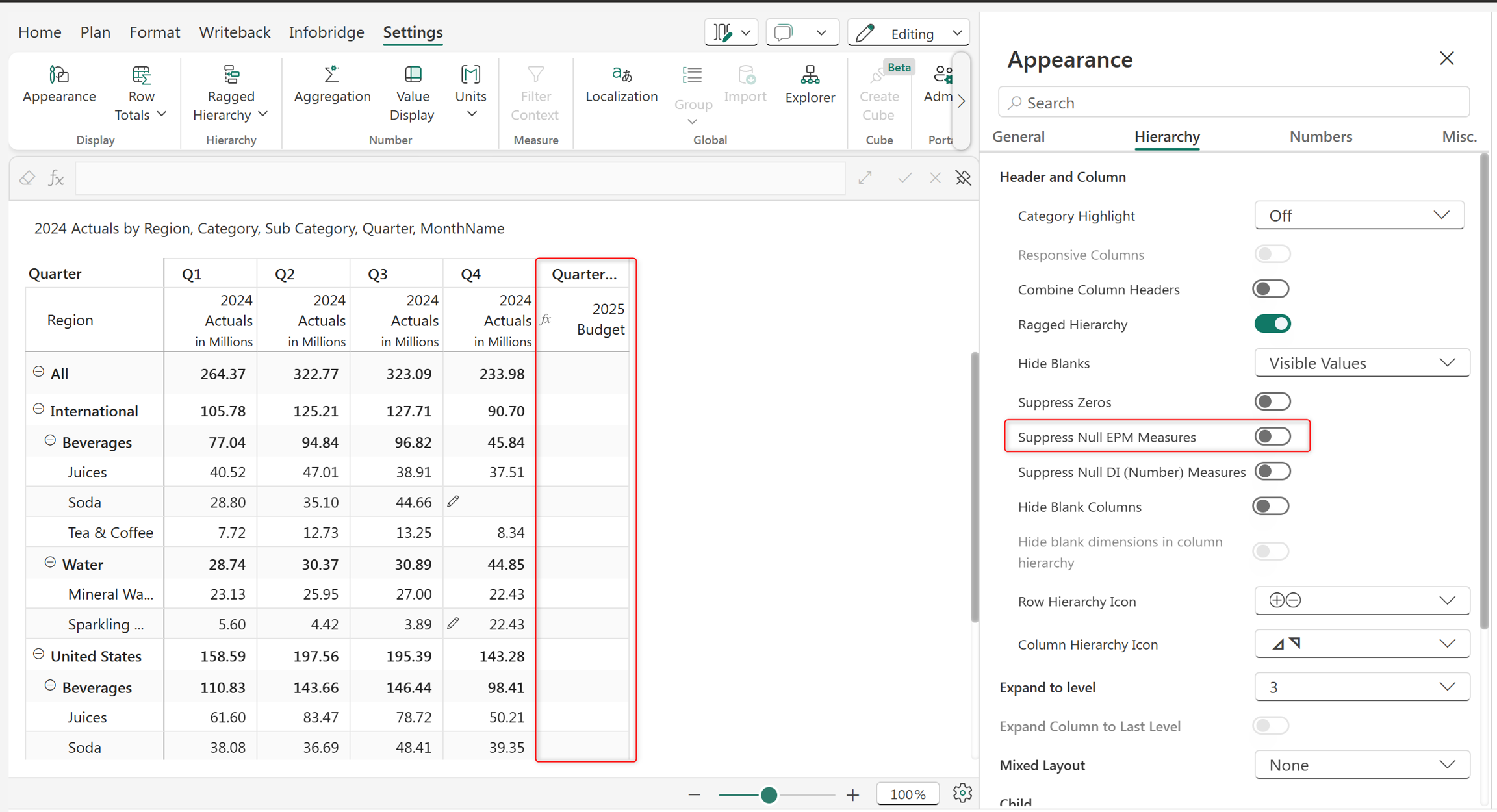

#### **1.4.4. Suppress null columns** Formulated Columns containing null values will be suppressed if this option is enabled. 2025 Budget is a formulated column with null values.

#### **1.4.5. Hide blank label columns** Columns with blank labels will be suppressed if this option is enabled.

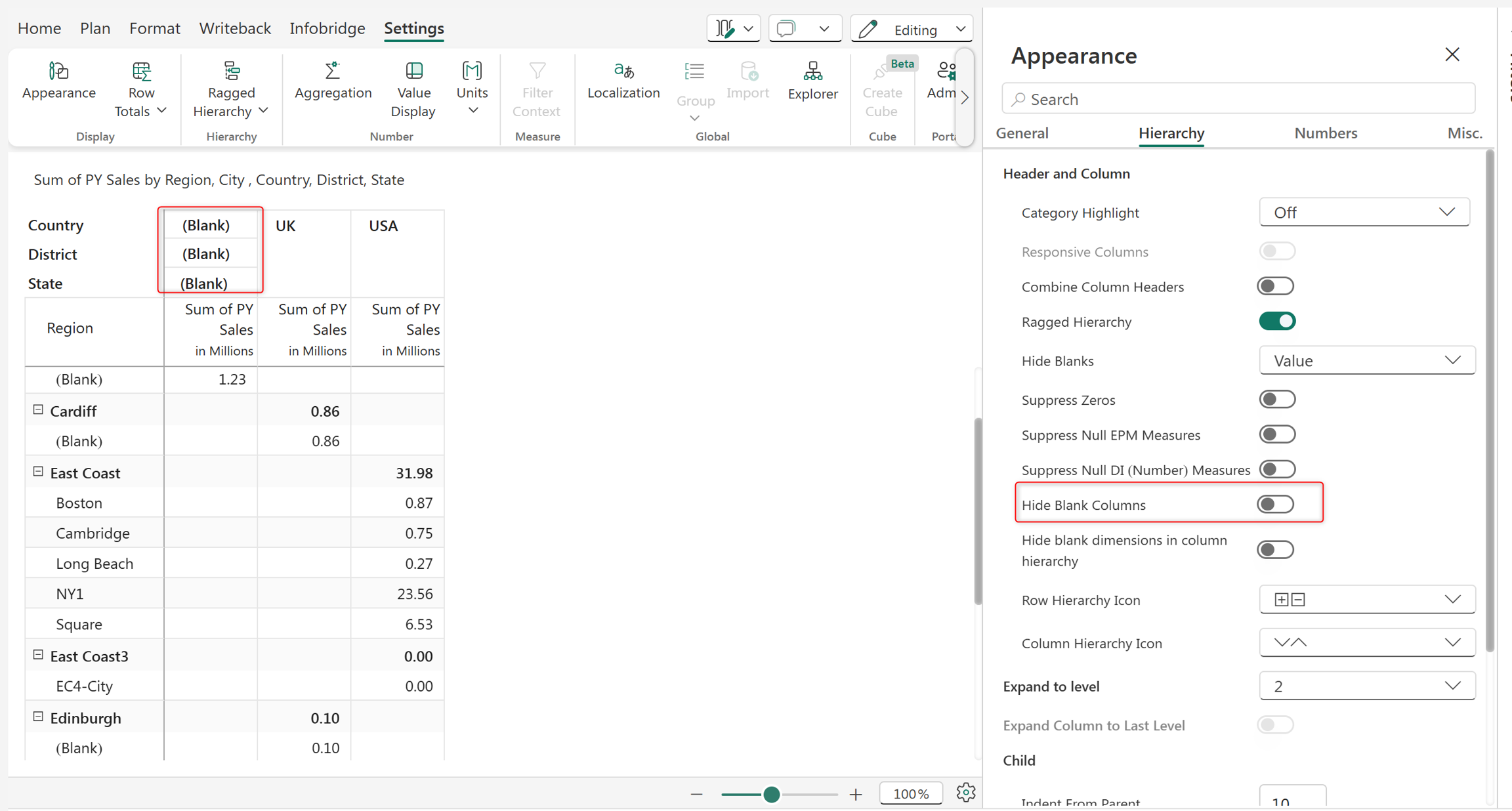

Blank categories in the column dimension

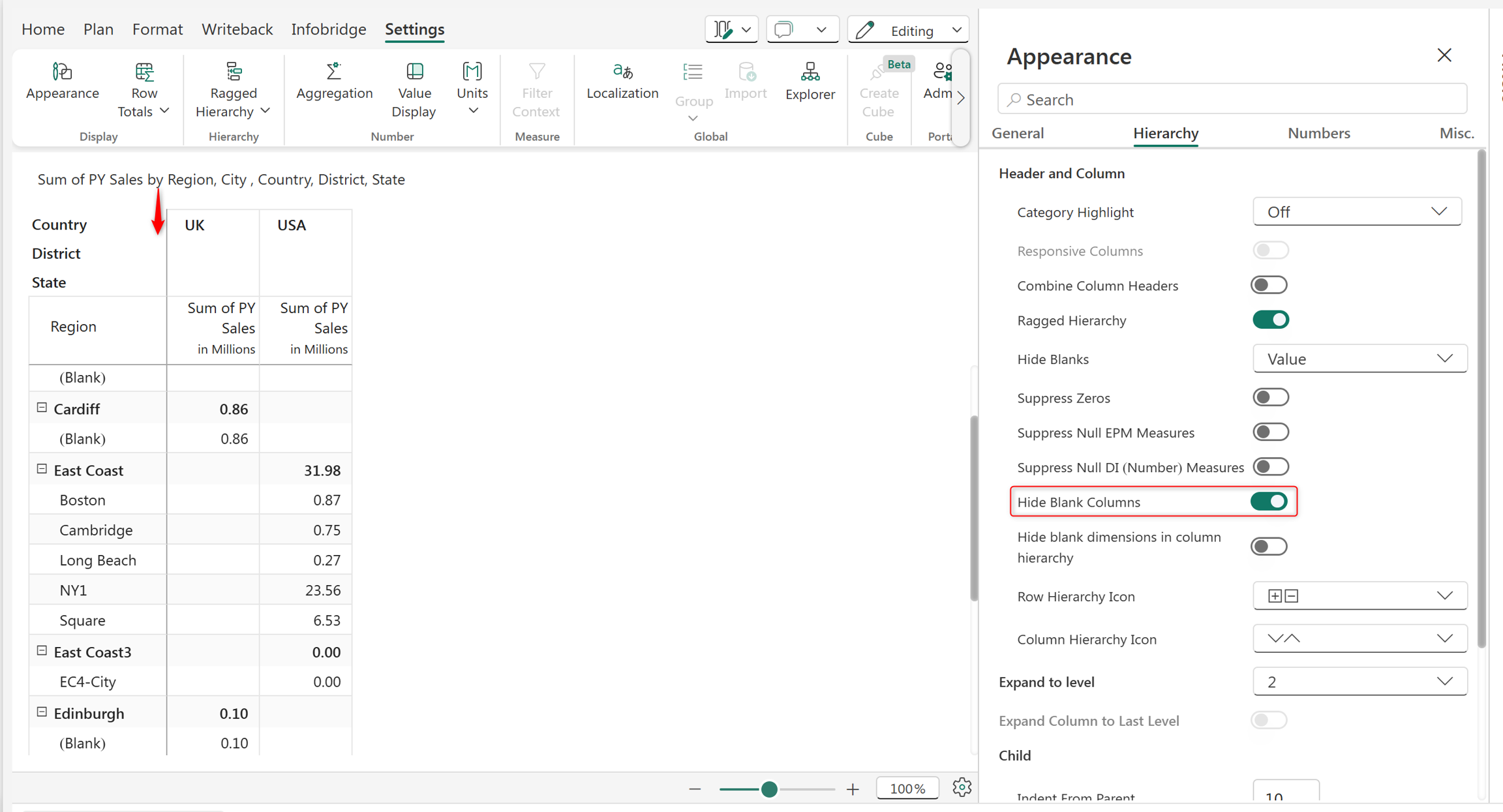

Blank Categories in the Column Dimension are suppressed

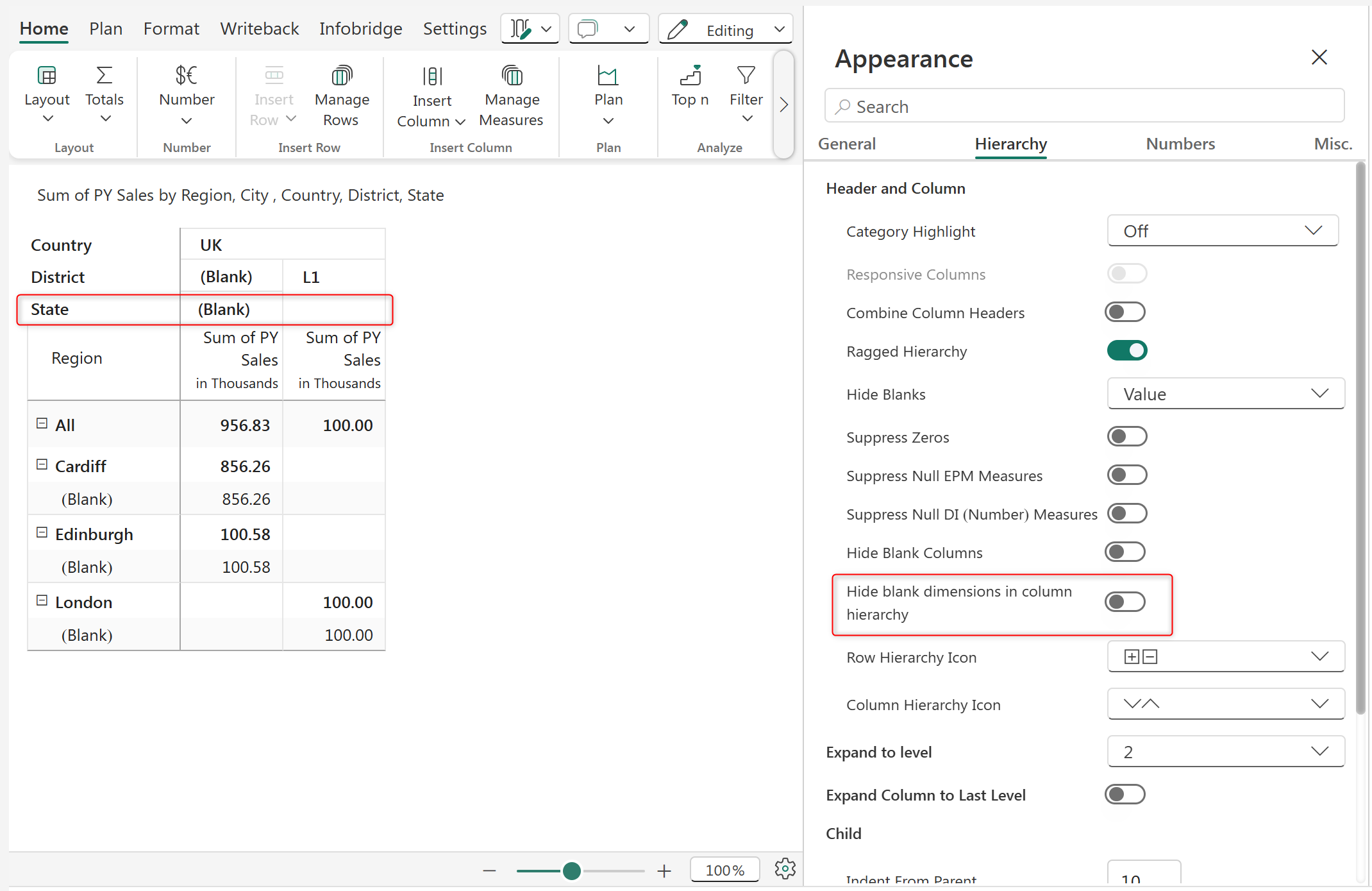

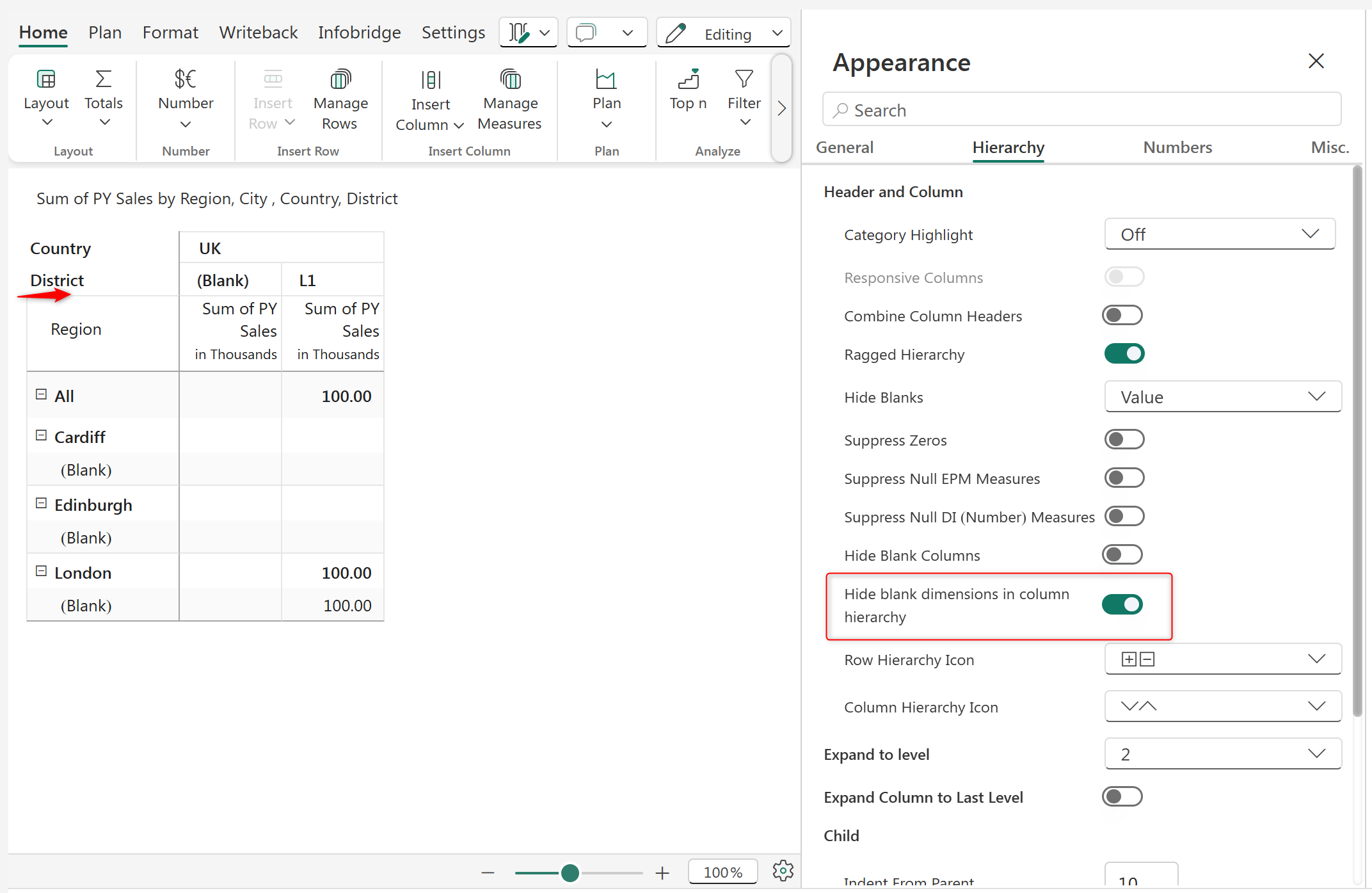

#### **1.5. Hide blank dimensions in column hierarchy** When you have hierarchical column dimensions, there may be cases where the entire dimension category is blank as shown in the report below.

Since these categories do not add value to the report, you can suppress them by enabling the **Hide blank dimensions in column hierarchy** option.

Blank column dimension 'State' is suppressed

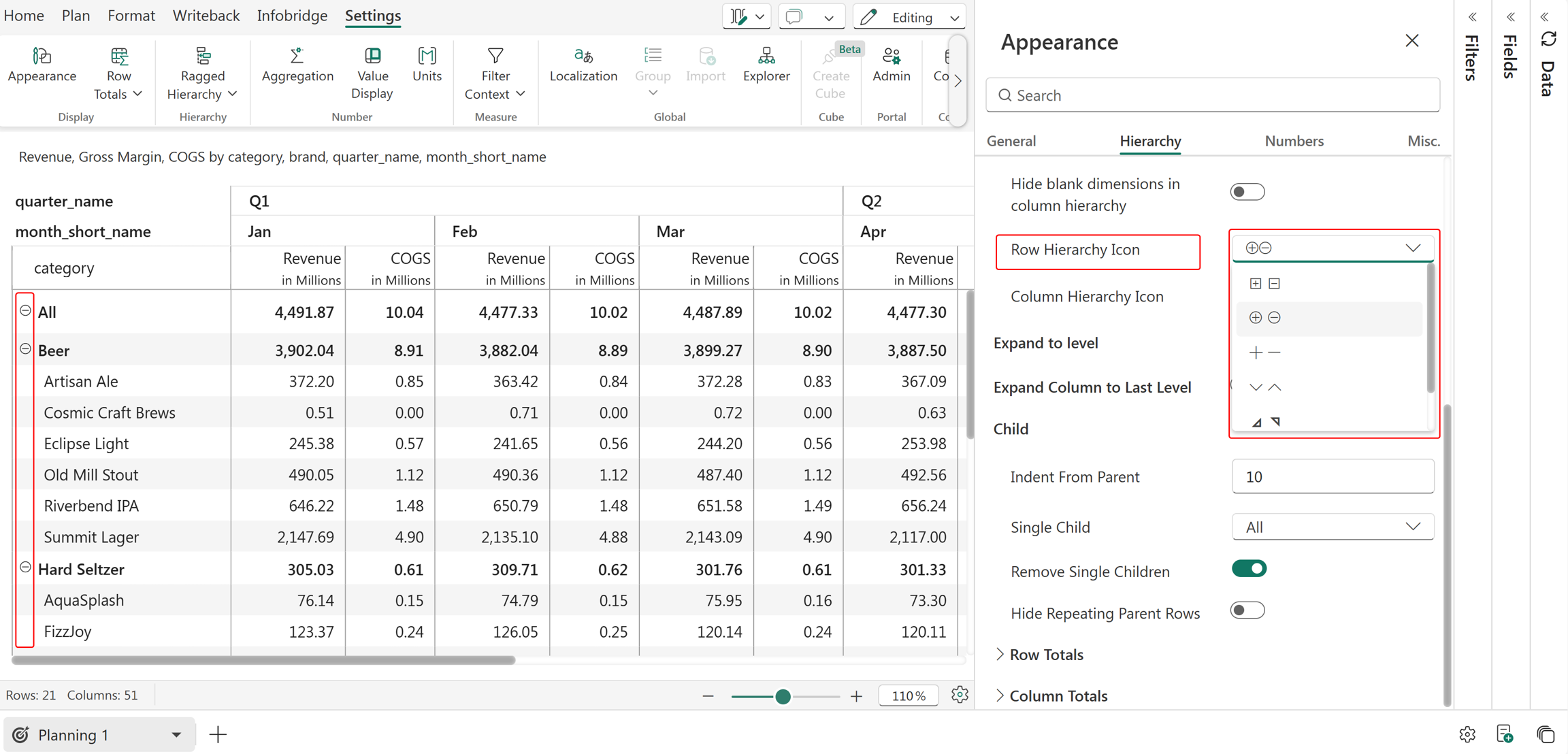

#### 1.6. Row hierarchy icon You can select custom icon styles to represent the row hierarchy i.e. choose the expand/collapse icons for hierarchical categories. If **None** is selected, an icon will not be displayed.

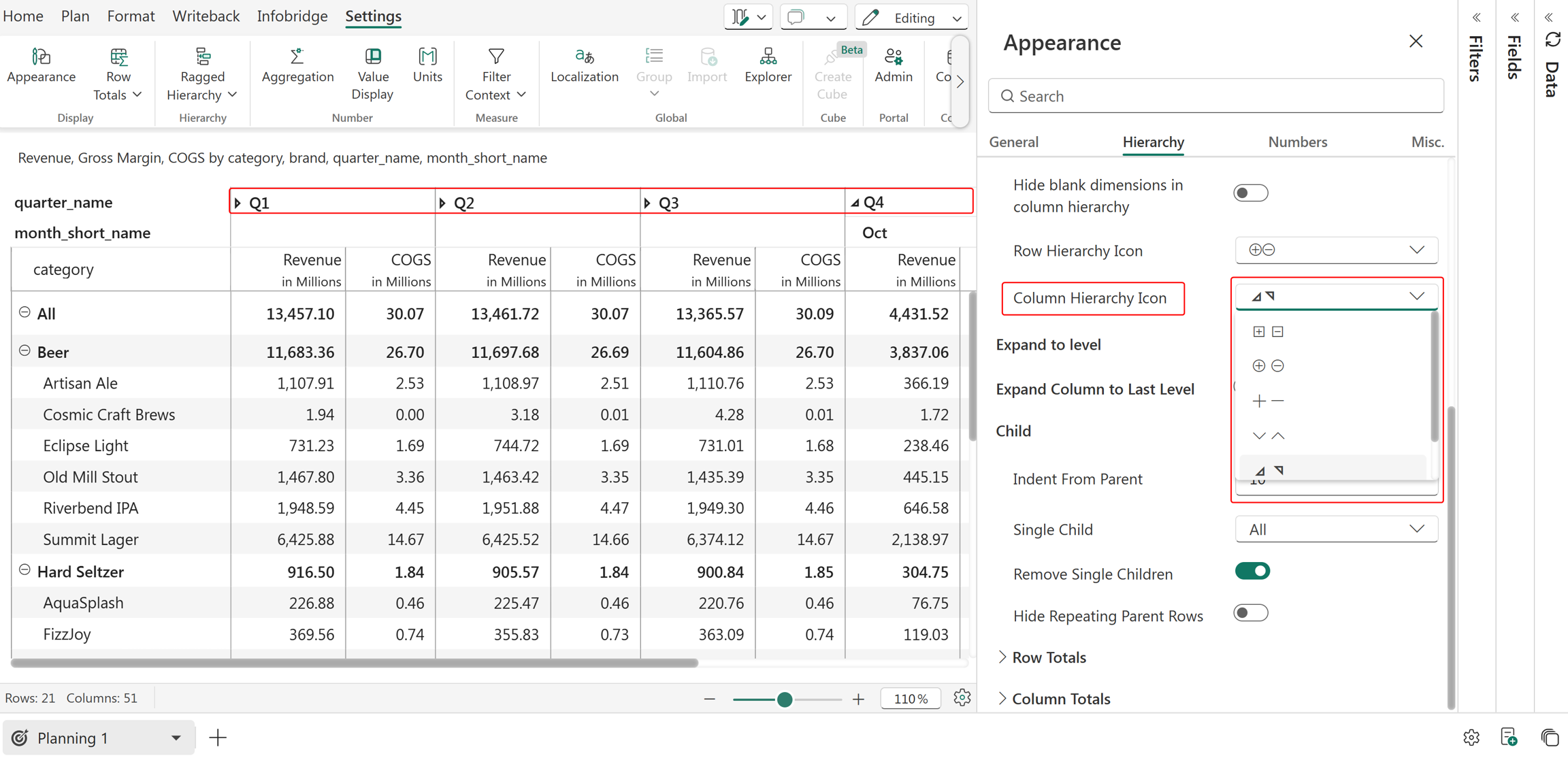

#### 1.7. Column hierarchy icon You can select custom icon styles to represent the column hierarchy as well.

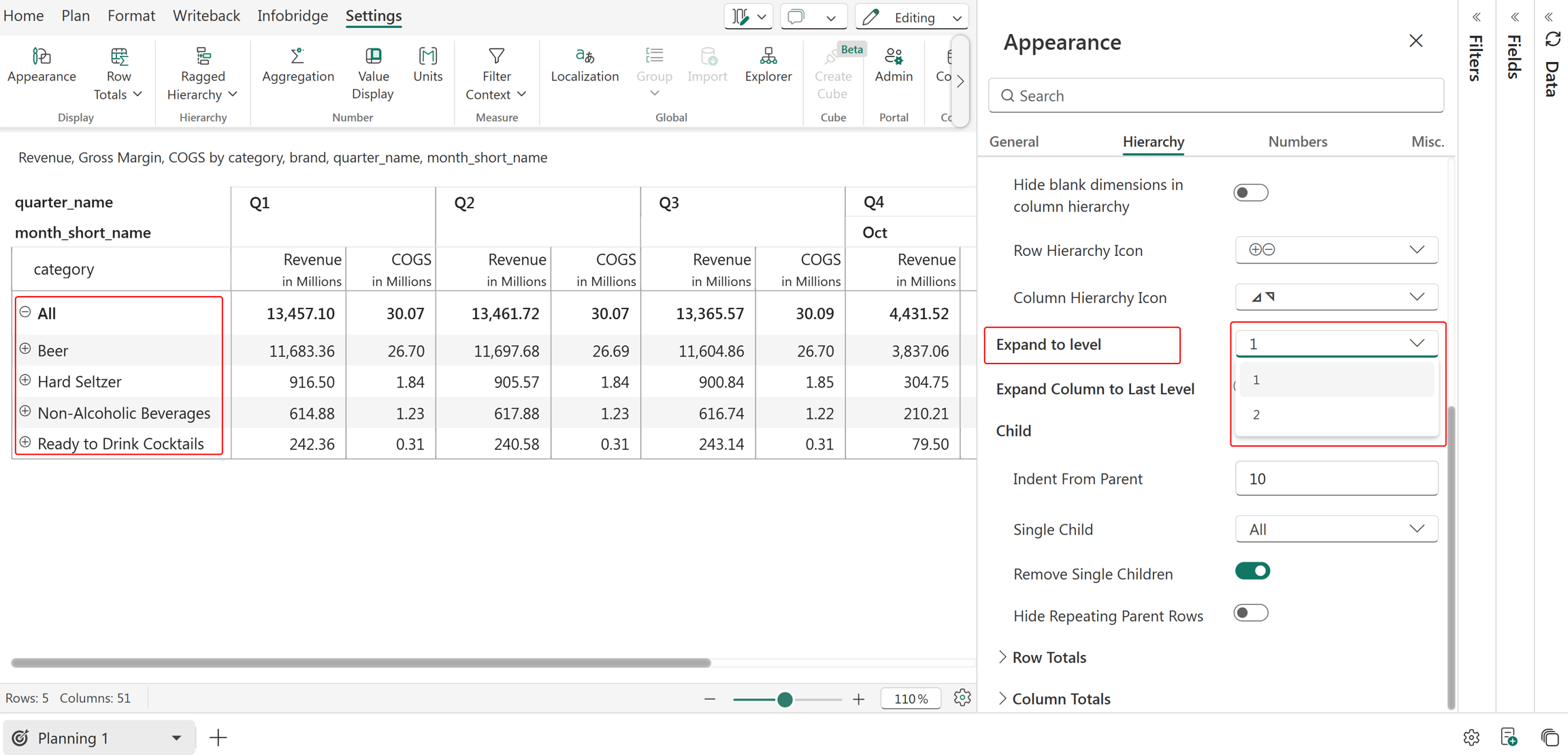

### 2. Expand to level If your dataset contains hierarchies with multiple levels, you can choose to expand the hierarchy to a specific level at the initial load. This setting will be retained even after applying a filter/slicer.

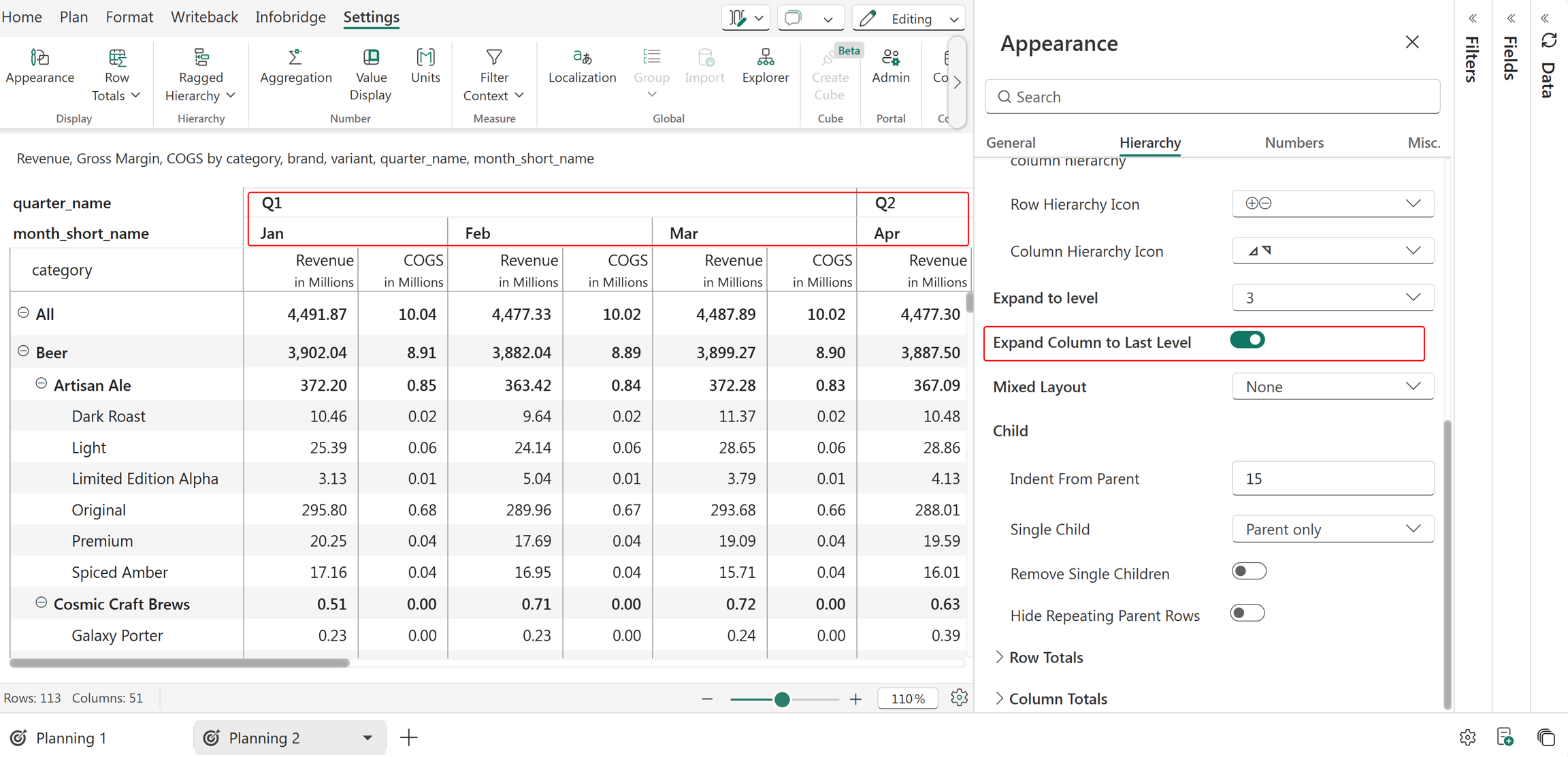

#### Expand column to last level If your columns have multiple hierarchy levels, enabling this option allows you to expand the hierarchy to the last level. This option is disabled by default.

Enabling expand column to last level toggle

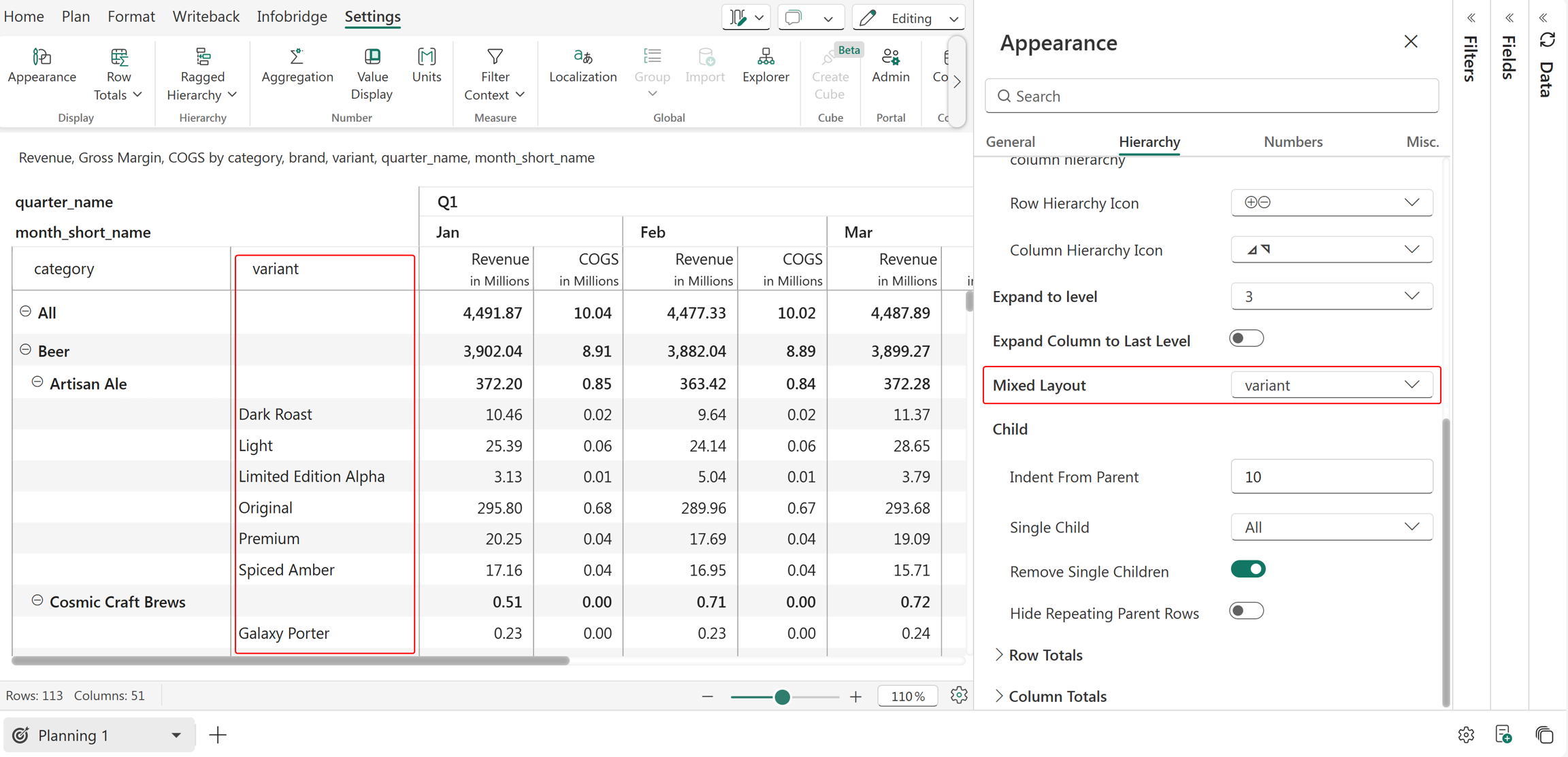

### 3. Mixed layout You can display a chosen field as a separate column similar to the stepped layout. By default, it is set to **None**. In the below image, the **variant** field has been selected, and it gets displayed as a separate column in the visual.

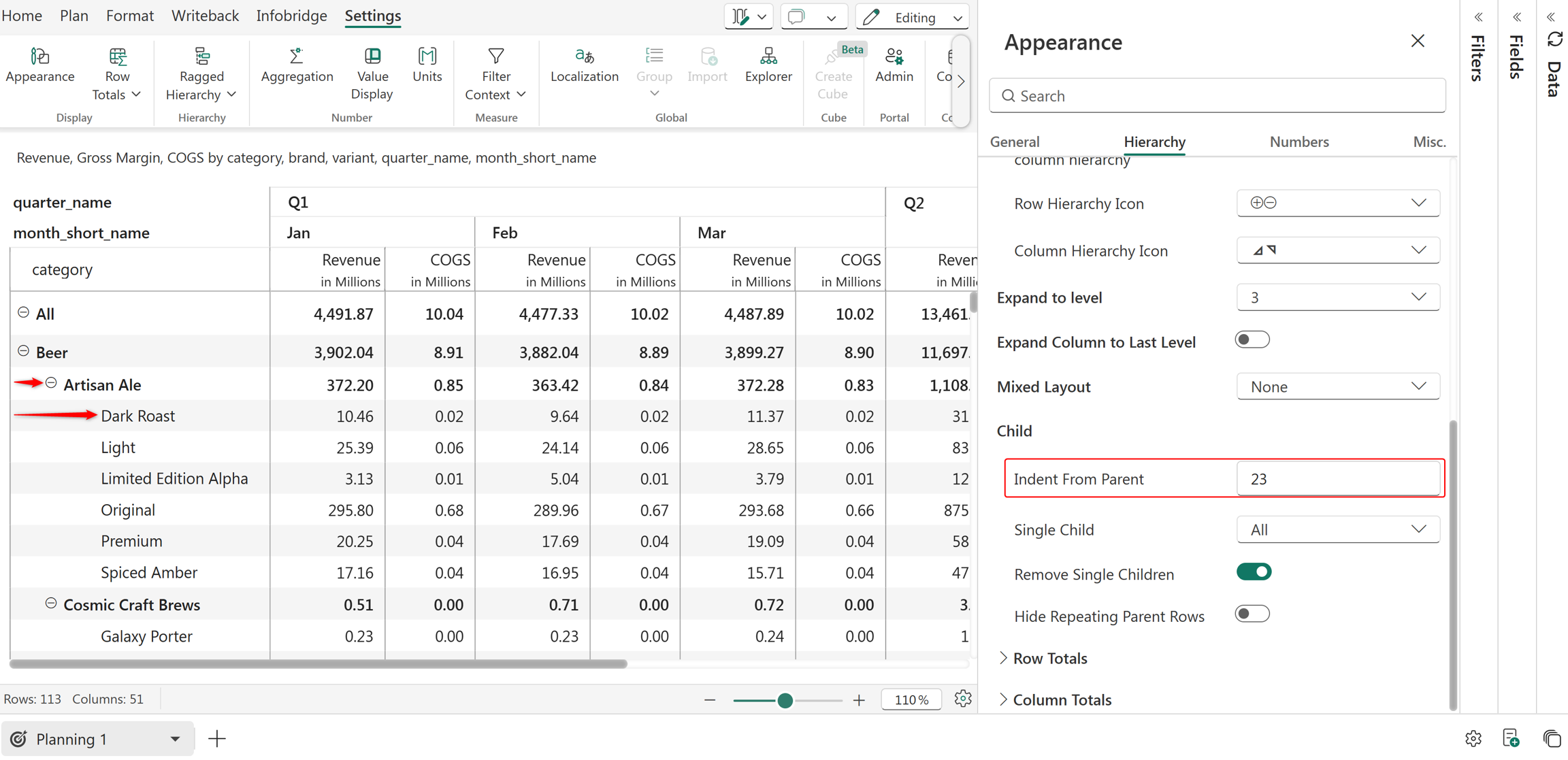

{% hint style="info" %} This option is available only in the Hierarchy layout when there are 3 or more levels in the row dimensions. {% endhint %} ### 4. Child #### 4.1. Indent from parent This option lets you set the amount of indentation that has to be applied to the last level of child row from the parent row. {% hint style="info" %} The minimum and maximum indentation values are 1 and 25 respectively. {% endhint %} In the image below, every child row has been indented from its parent row by the specified amount.

#### 4.2. Single child Use this option to control which nodes are displayed when a parent hierarchy has only one child. In this example, we have a multi-level account hierarchy with 4 single-child rows. The 'Artisan Ale', 'Dark Roast', 'Cosmic Craft Brews', 'Galaxy Porter' has only one child row with 'Dark Roast', 'Galaxy Porter' having the leaf node. Let's see how this report is displayed for each of the options. * **All** - Displays all rows, including parent rows, single child rows, and blank rows. Let's consider the example of the 'Beer' category with brands 'Artisan Ale' and 'Cosmic Craft Brews' to understand the various Single child options better.

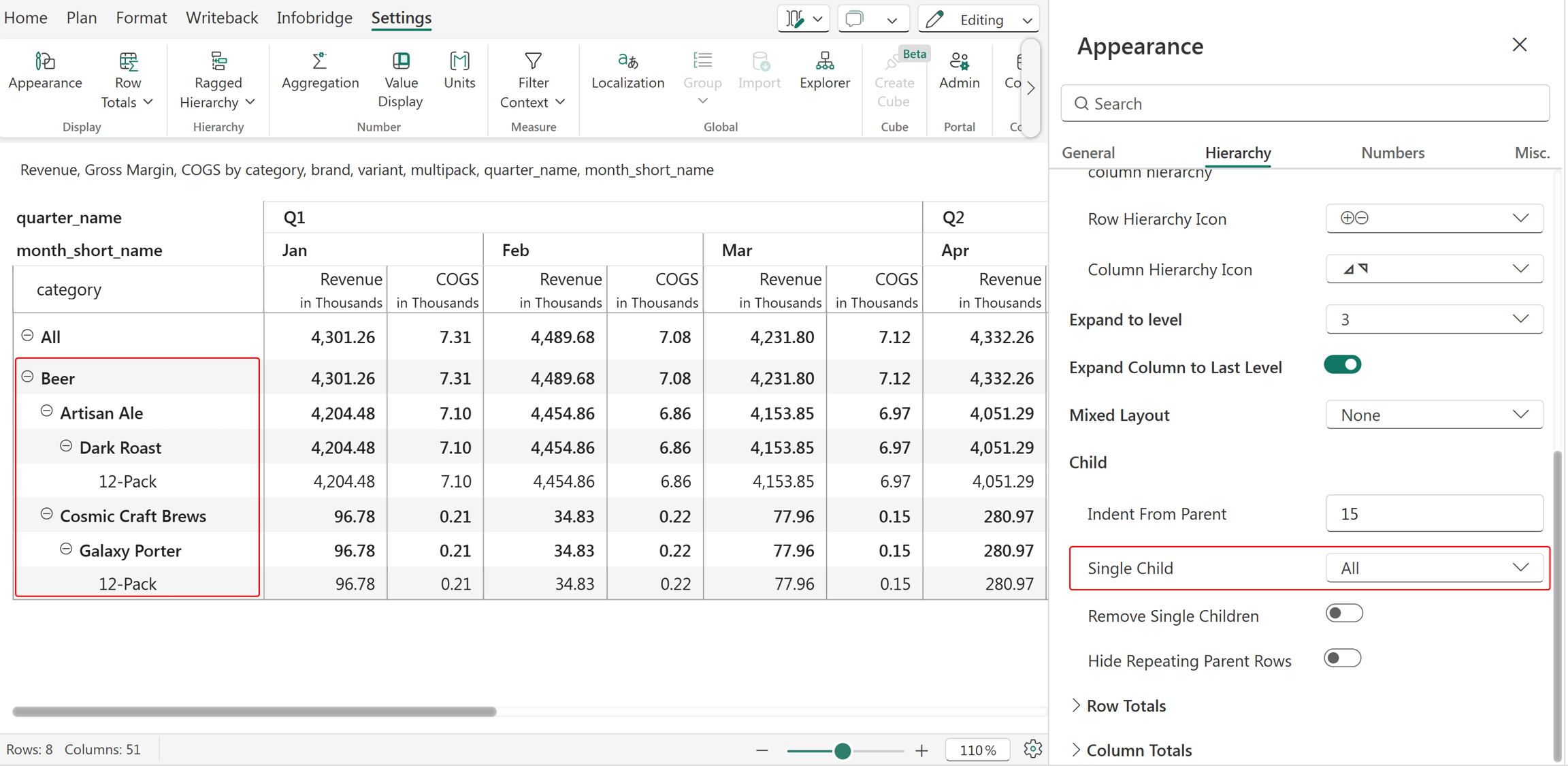

All the Single child rows of 2 brands are listed.

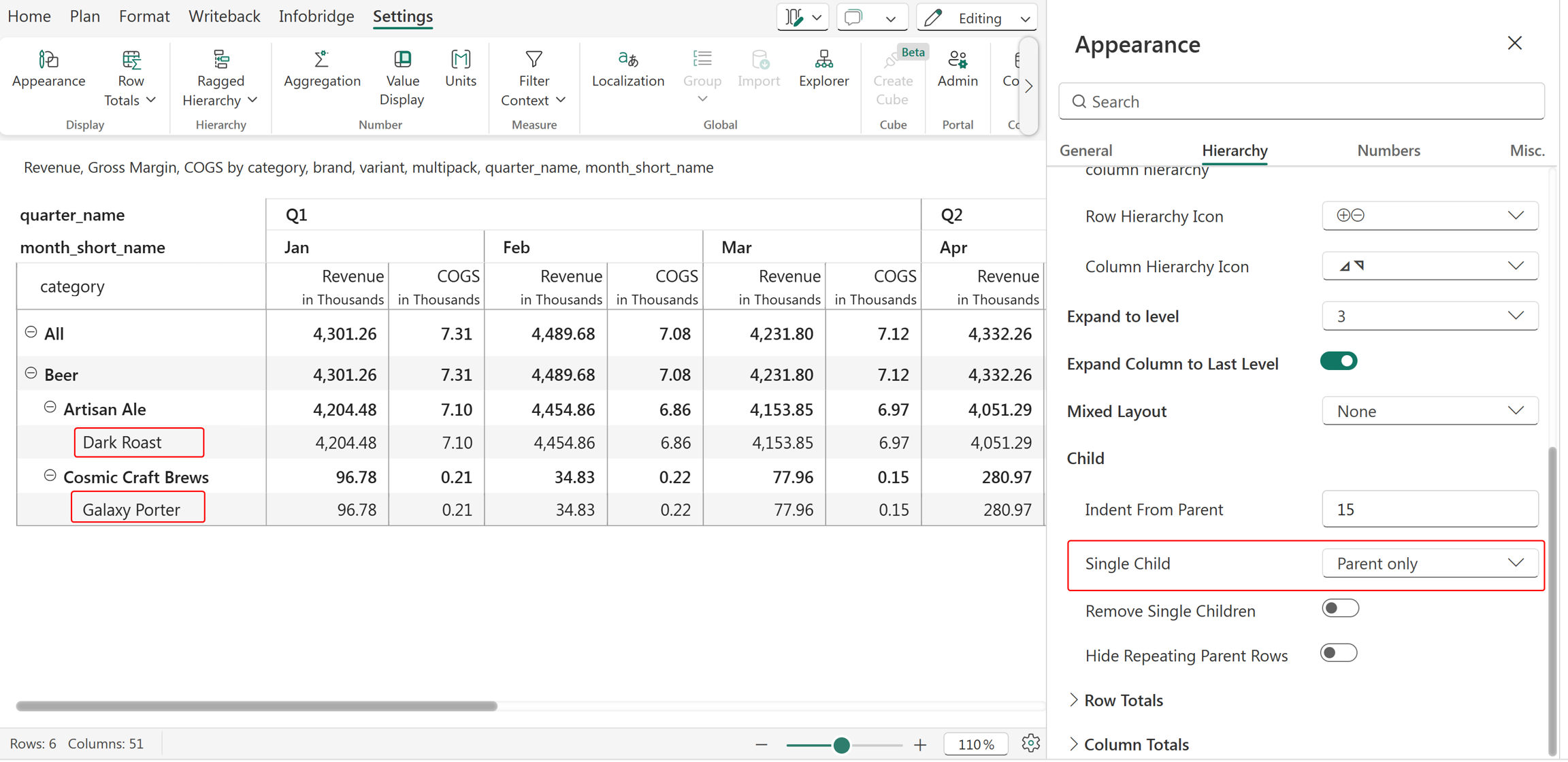

* **Parent only** - Displays only the parent nodes of the single child.

Parent nodes of the single child rows '12-Pack' are displayed

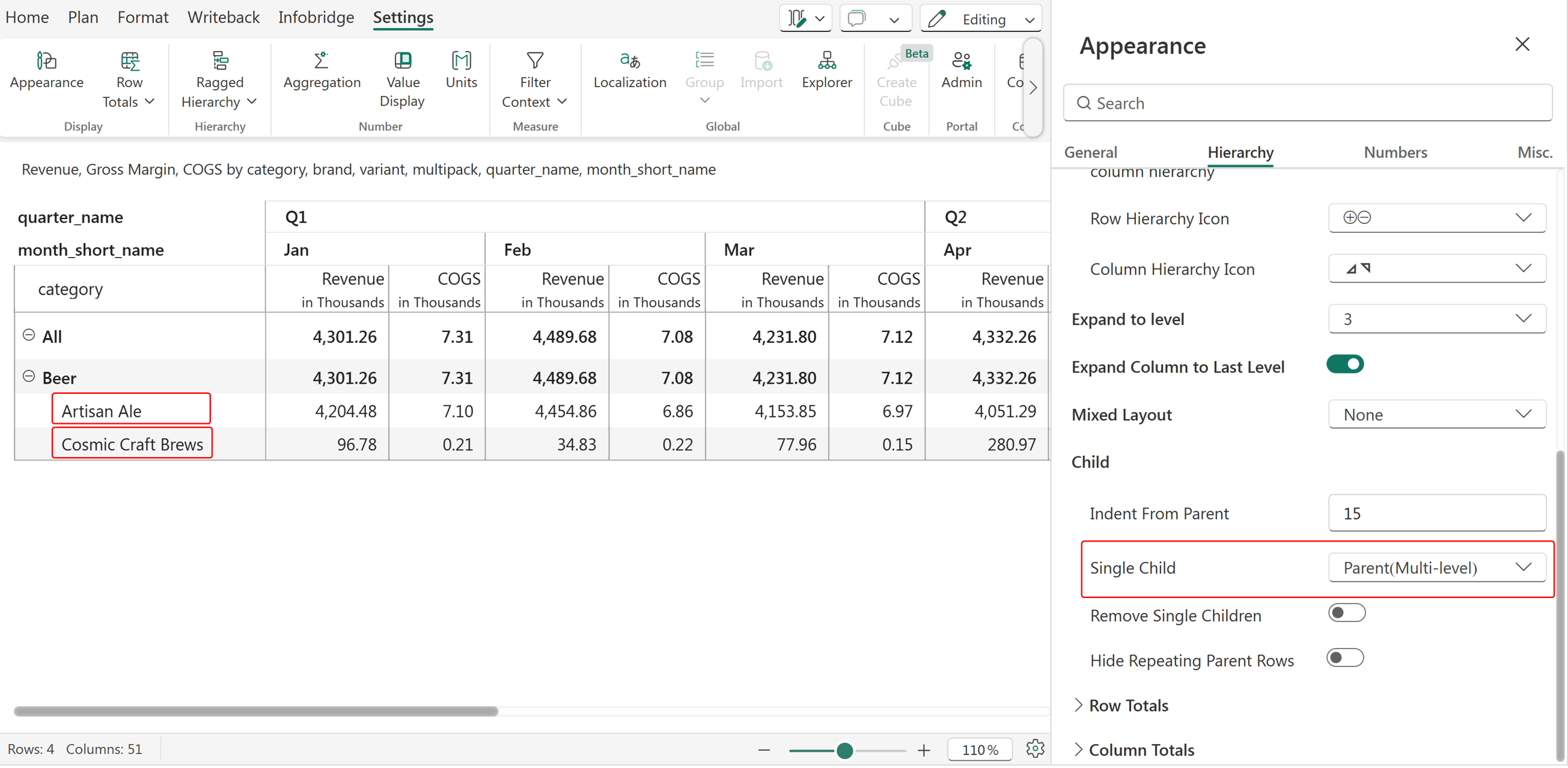

* **Parent (Multi-level) -** Displays only the highest-level parent row with single child of the multi-level hierarchy. In the image below, the highest-level parent row with a single child is displayed.

Highest-level parent row with a single child is displayed.

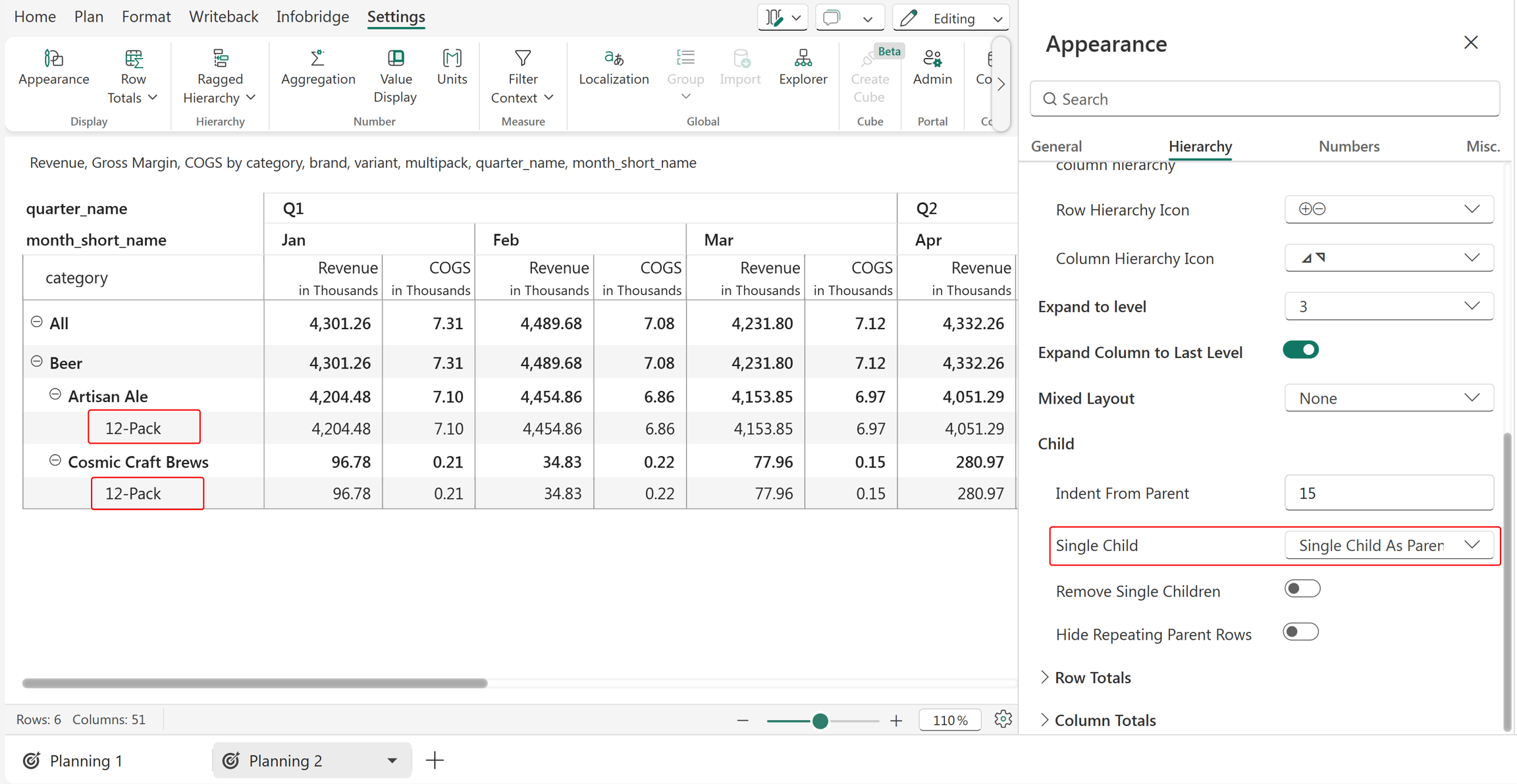

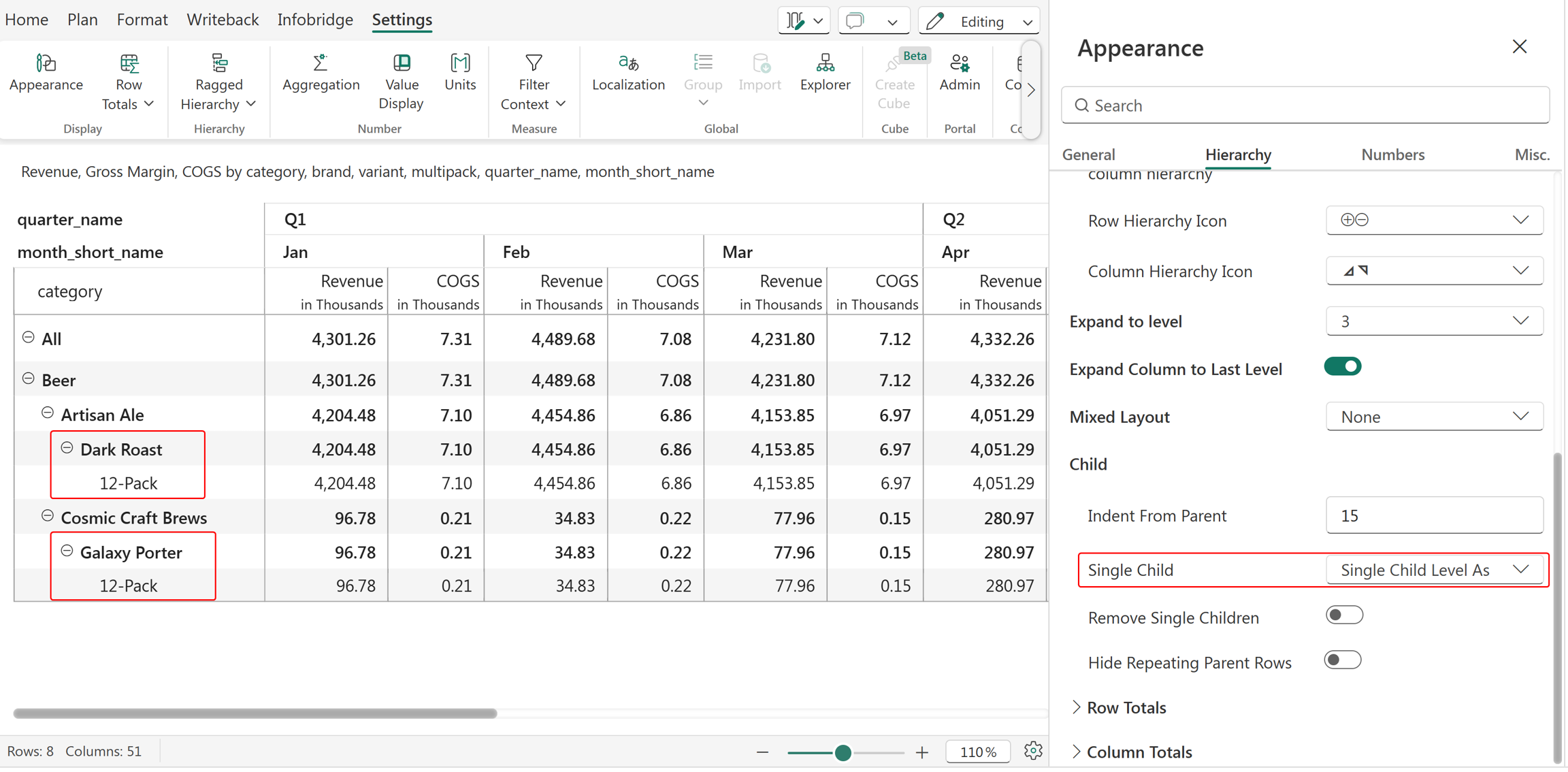

* **Single child level as parent -** Displays the single child as the parent level. Here, the '12-Pack' is the child, which is shown as the parent level.

* **Single child as parent -** Displays only the single child at the lowest level.

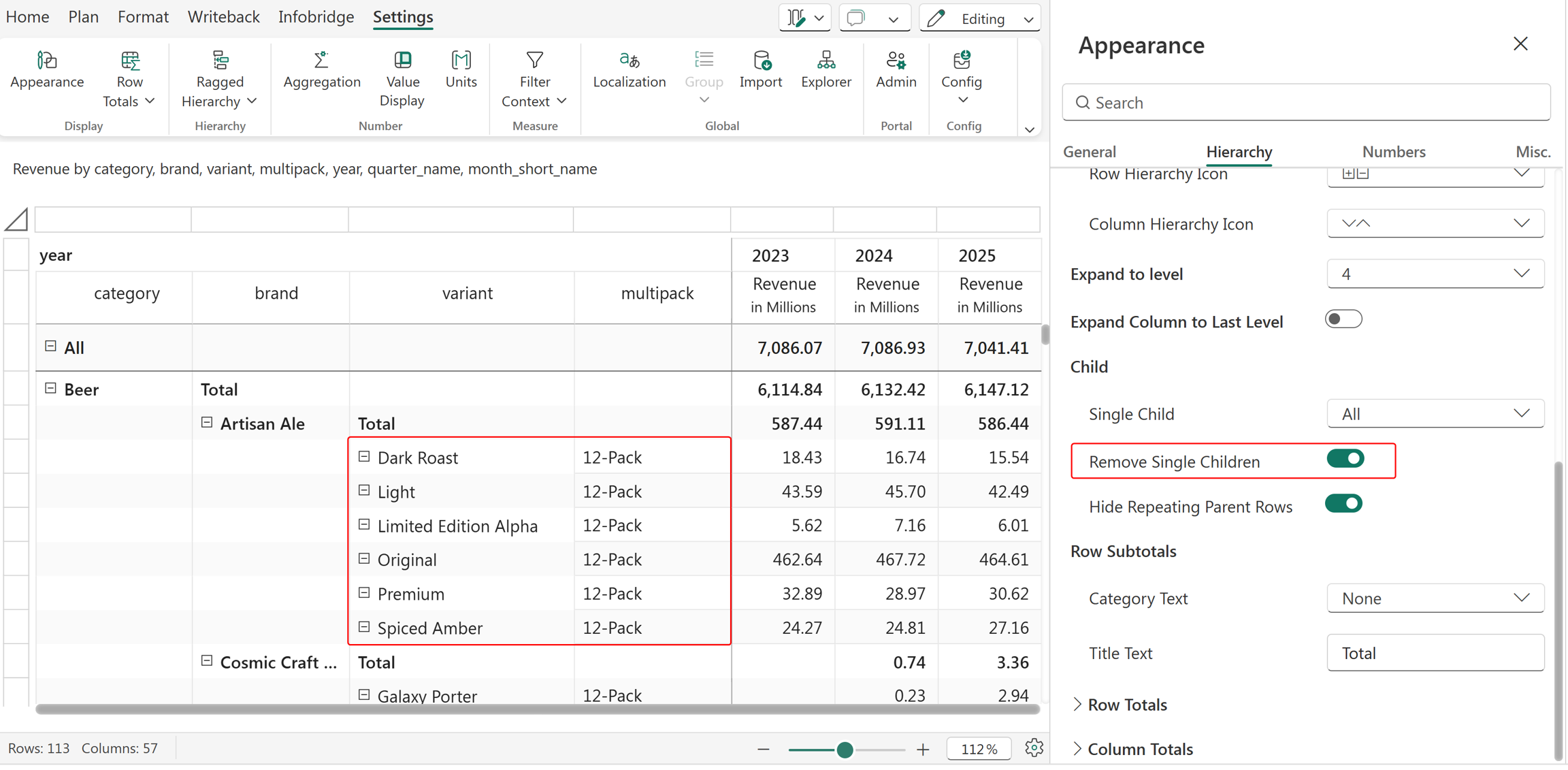

#### 4.3. Remove single children In the Outline layout, enabling this option hides leaf nodes when a parent has only a single child with no siblings.

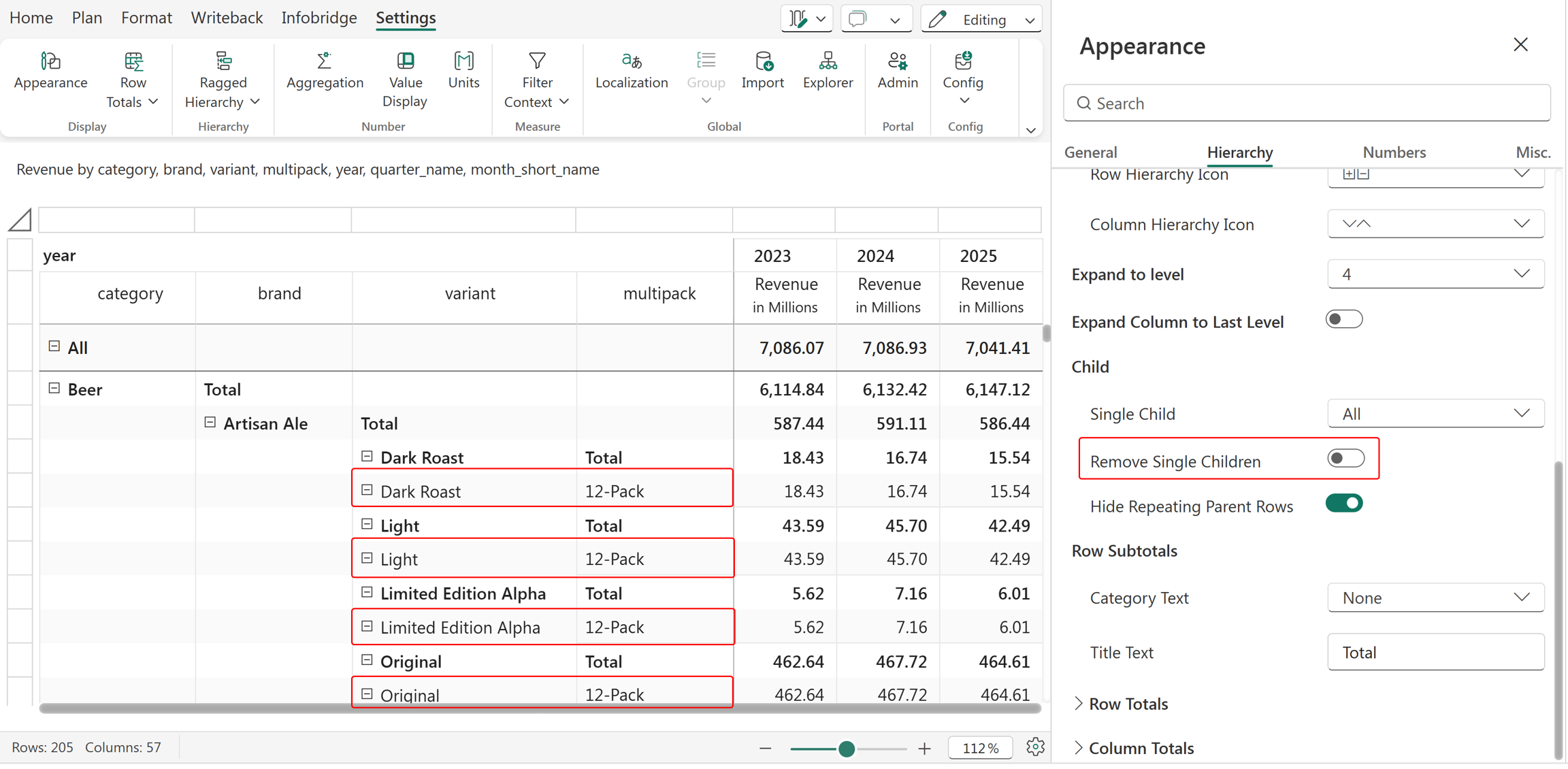

Parents with single children are present

Single children are hidden after enabling remove single children

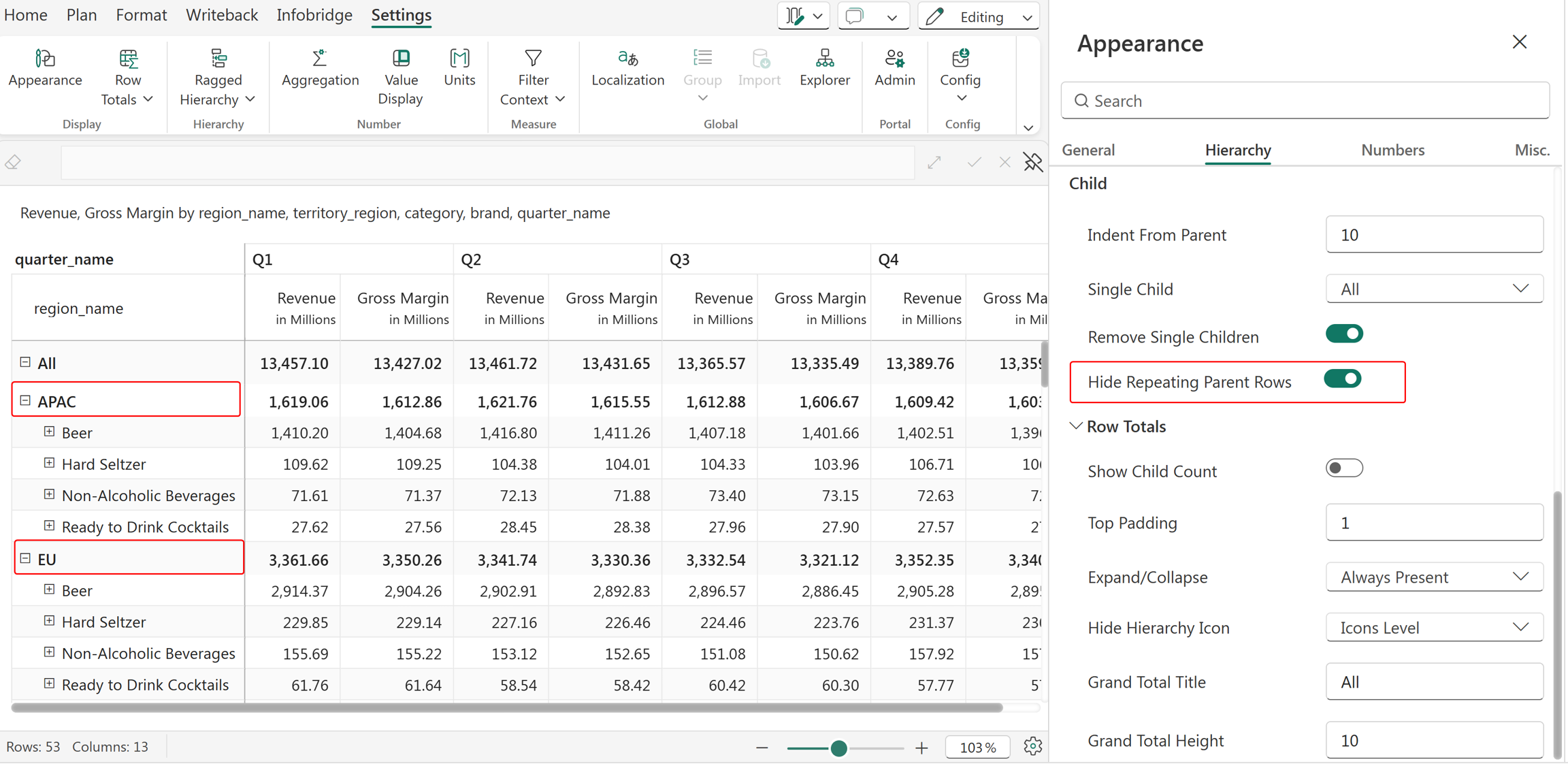

#### 4.4. Hide repeating parent rows When enabled, this option hides repeating consecutive parent rows in the hierarchy for improved clarity. The images below compare the hierarchy view when the **Hide Repeating Parent Rows** toggle is disabled and enabled.

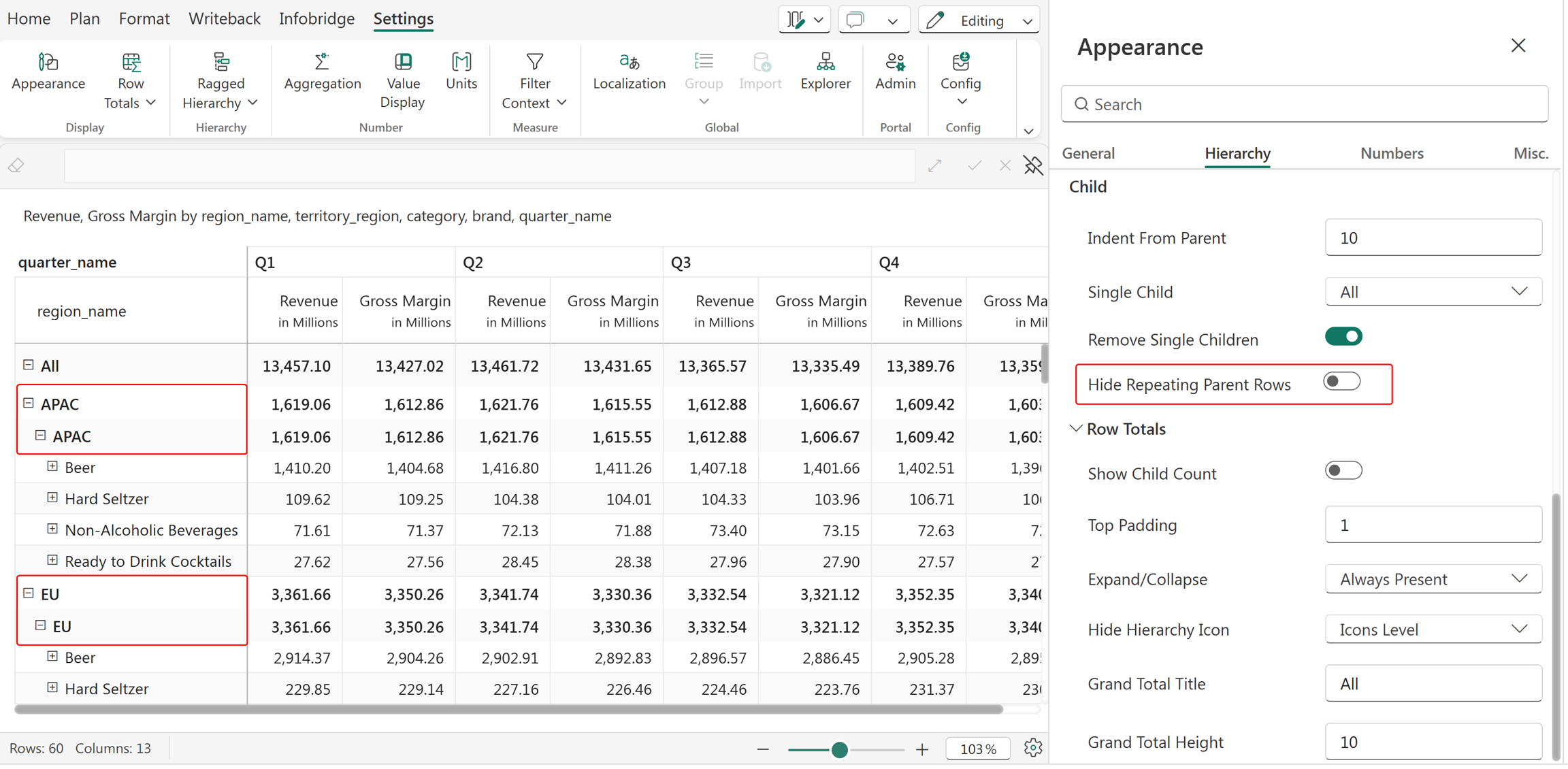

Hierarchy view with hide repeating parent rows disabled

Hierarchy view with hide repeating parent rows enabled

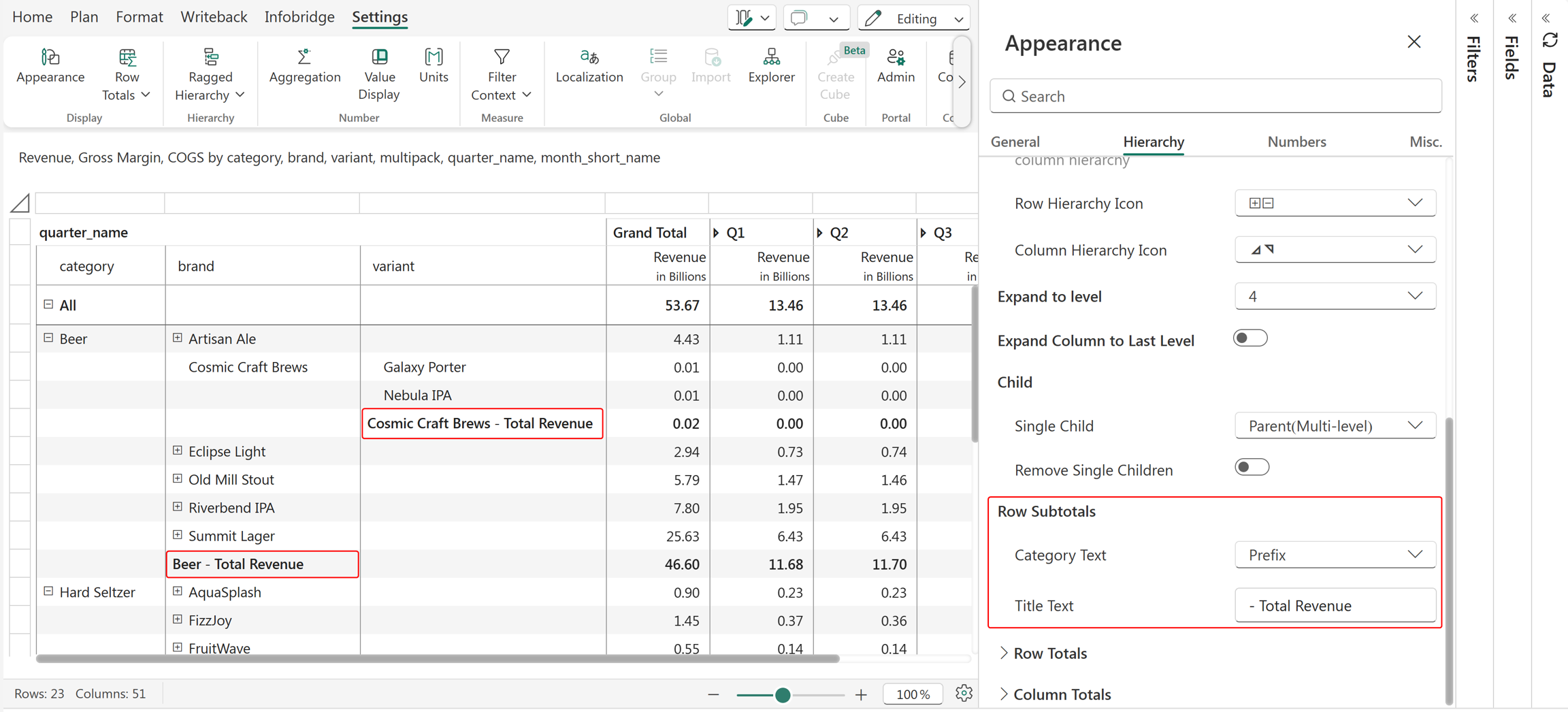

### 5. Row subtotals With Plan, while using **outline** or **stepped** layouts, you can customize the title for the subtotal rows in two available options: * By adding the parent row dimension category as a **suffix** or **prefix** * Customizing the 'Total' text In the example, the row dimension category is added as the prefix and ' - Total Revenue' is added as the text for each subtotal row - E.g., 'Beer - Total Revenue' or 'Cosmic Craft Brews - Total Revenue'.

Prefix and a custom title text ' - Total Revenue' is added

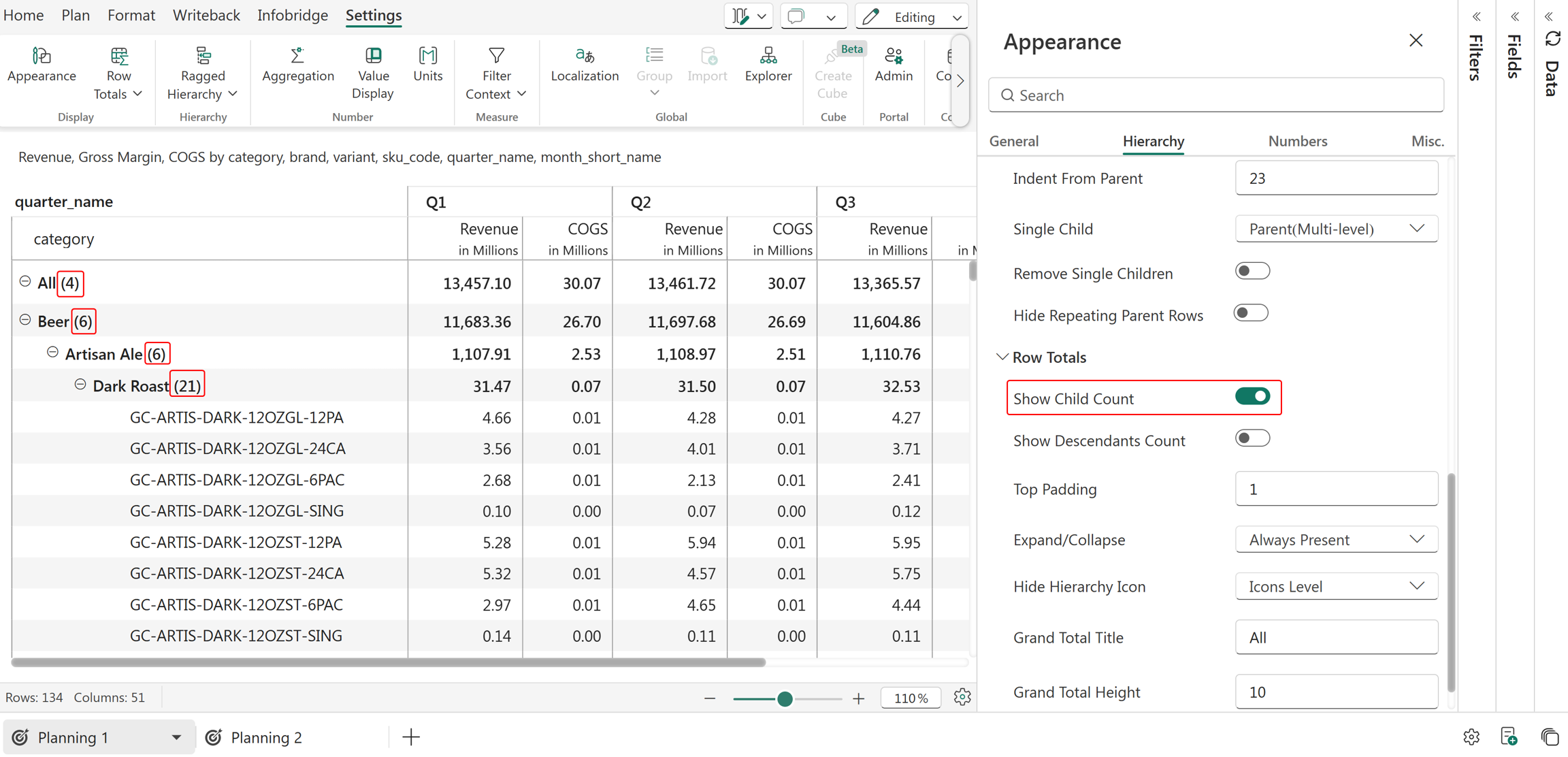

### 6. Row totals You can customize the row totals by adding child count, padding, editing titles, and more. The available options are explained below. #### 6.1. Show child count Enabling this option will display the count of child rows next to the name of the parent row in brackets.

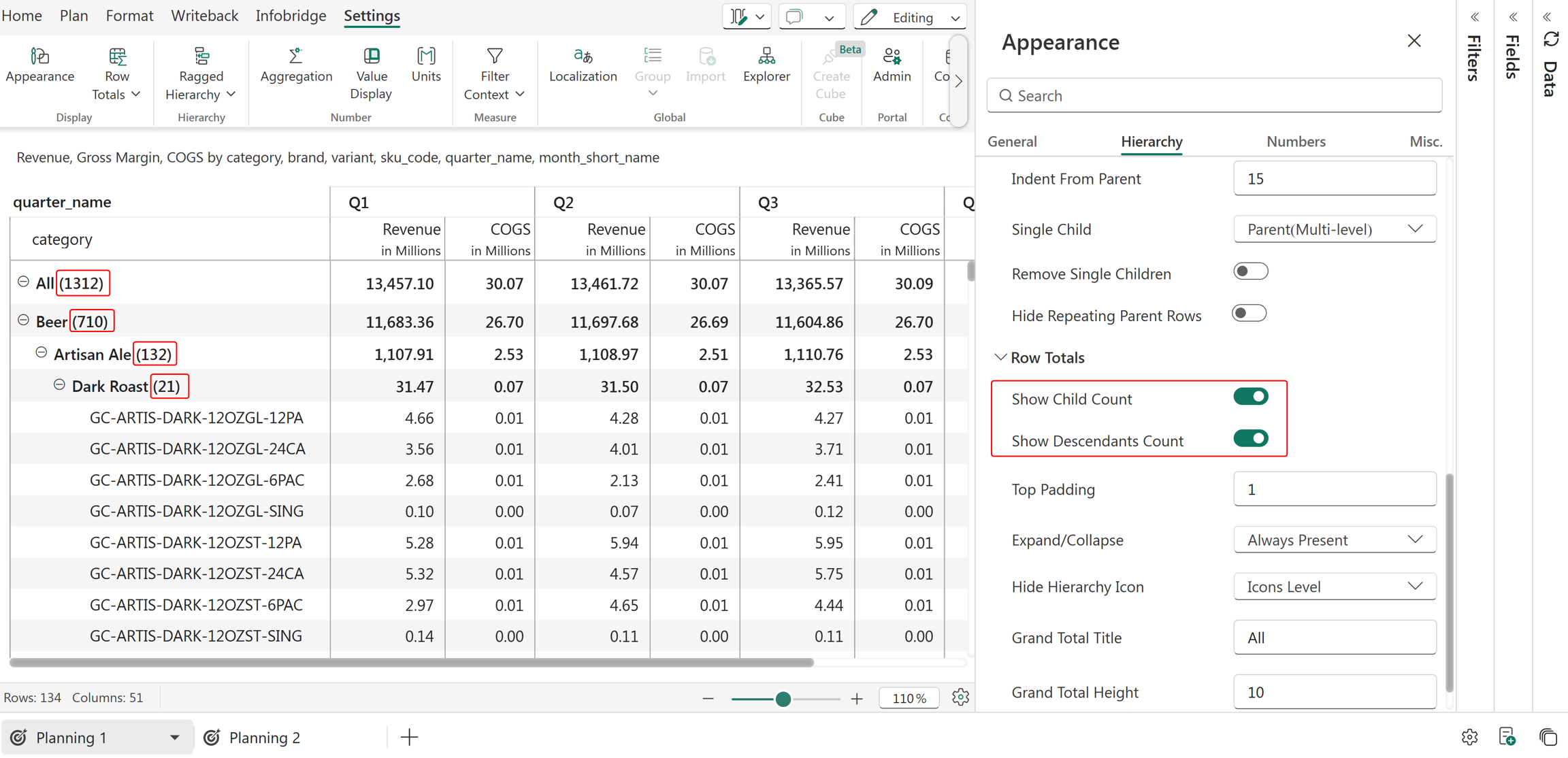

#### 6.2. Show descendants count You can also display the total number of children including the leaf nodes under a parent category by enabling **Show Descendants Count** toggle. {% hint style="info" %} Prerequisite: the **Show Child Count** option should be enabled. {% endhint %}

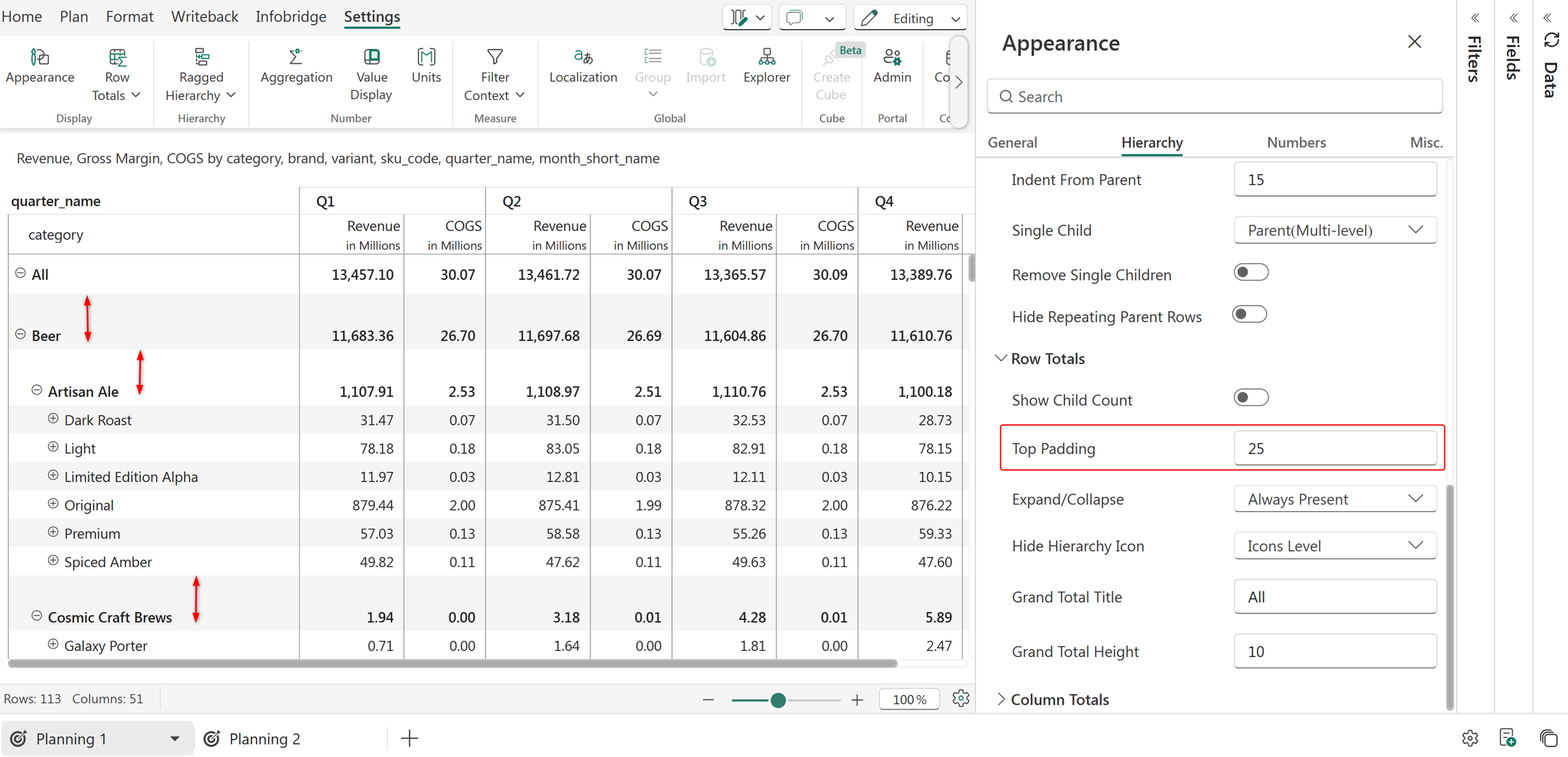

#### 6.3. Top padding Using this option, you can configure the spacing/padding between row hierarchies.

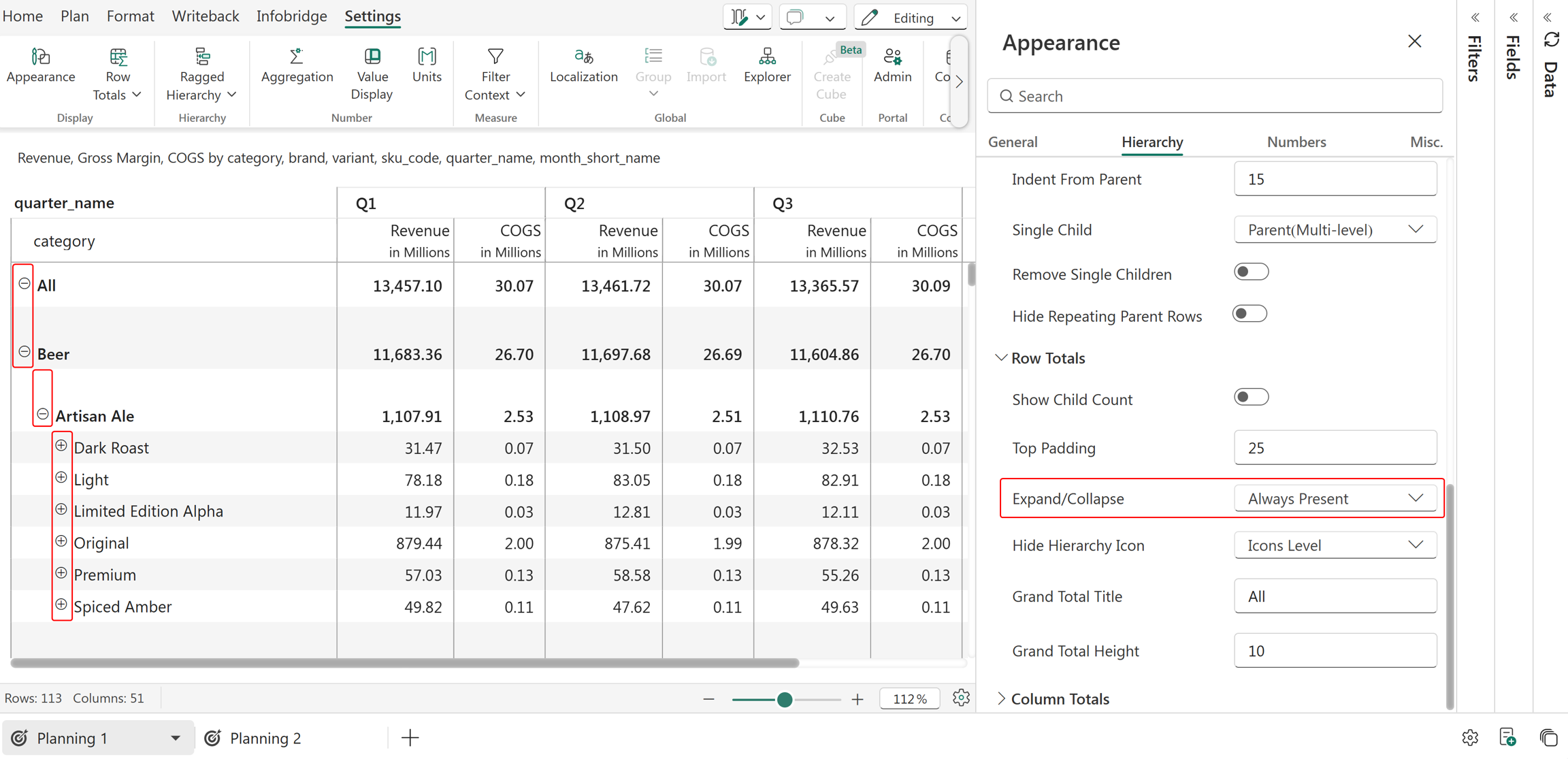

#### 6.4. Expand/collapse This option lets you specify when the expand/collapse icons for the hierarchies have to be displayed. * **Always present** - Expand/collapse icon will be always present * **Only on hover** - The expand/collapse icons are displayed only when you hover over the rows

Setting expand/collapse icons to be present always

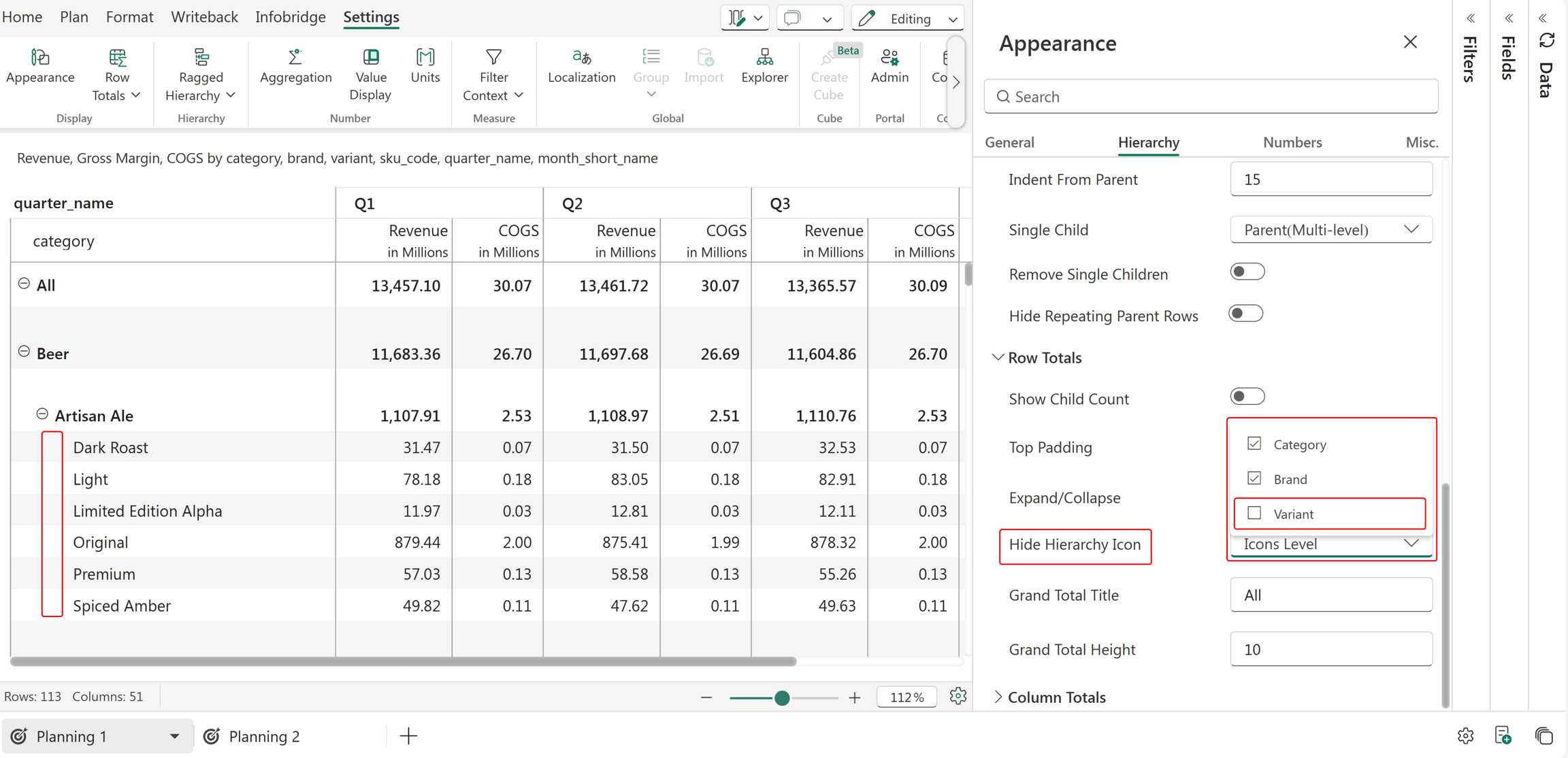

#### 6.5. Hide hierarchy icon With this option, you can specify the fields for which you want to hide the hierarchy icon. All the fields are selected by default, and unselecting any field will hide the hierarchy icon for that field. In the image below, the 'Variant' field has been unselected; therefore, the hierarchy icon for that field has been hidden.

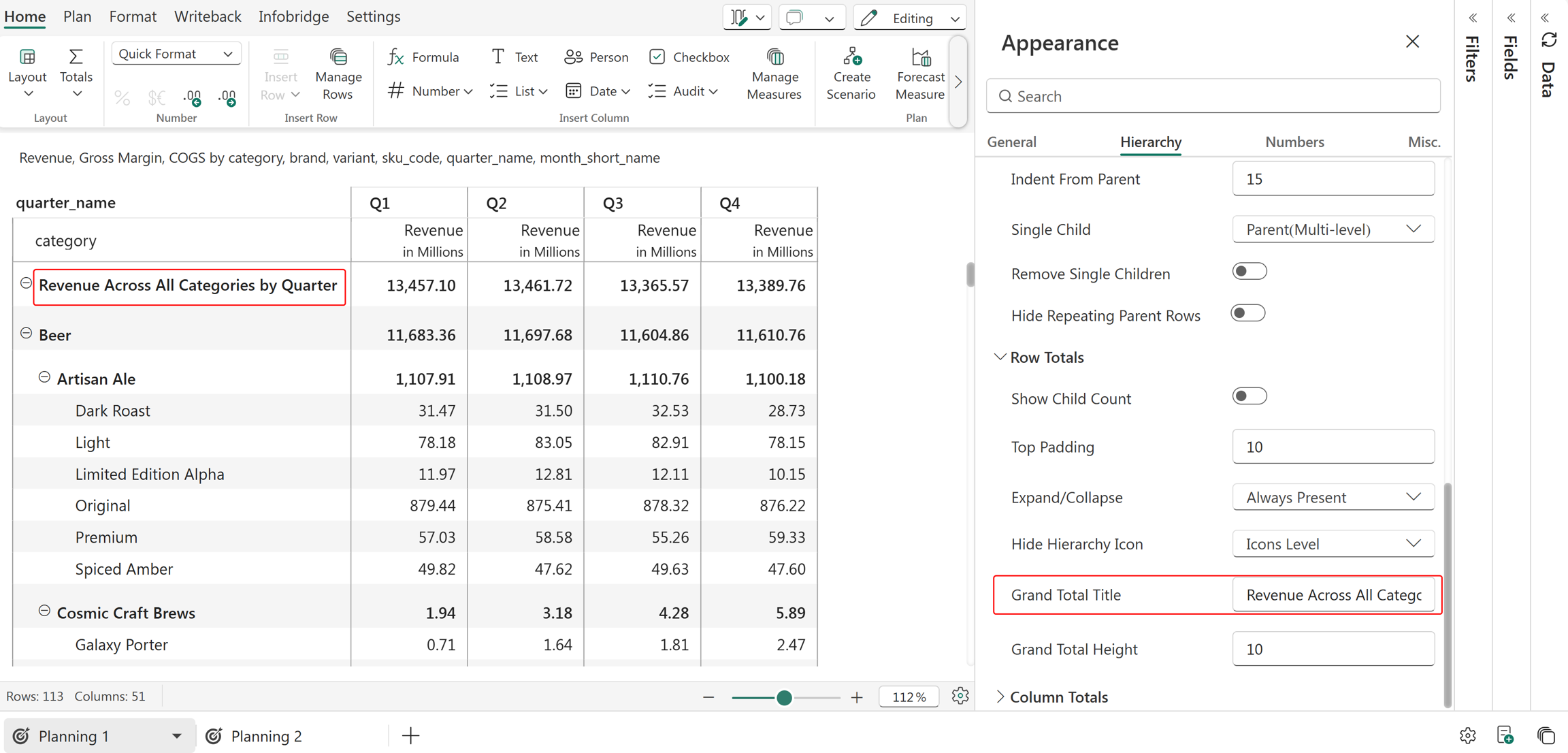

#### 6.6. Grand total title {% hint style="info" %} The options related to Grand total can be seen only if the Row/Column Grand Total value has not been set to **Off** under the **Totals** option. {% endhint %} You can set a custom title for the grand total in the textbox.

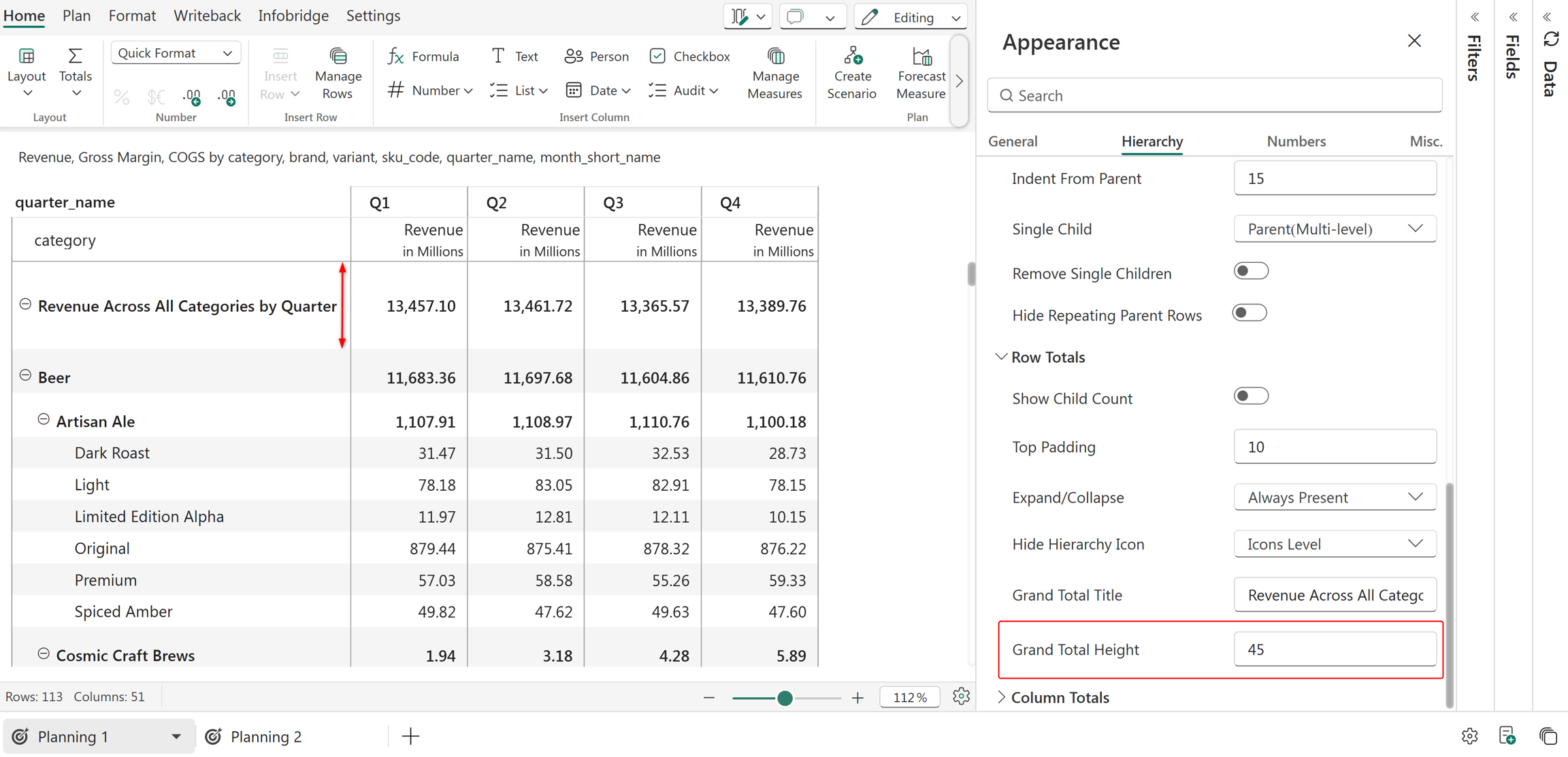

#### 6.7. Grand total height The value that you specify here will override the default height of the grand total row. {% hint style="info" %} The minimum and maximum values for grand total height are 5 and 45 respectively. {% endhint %}

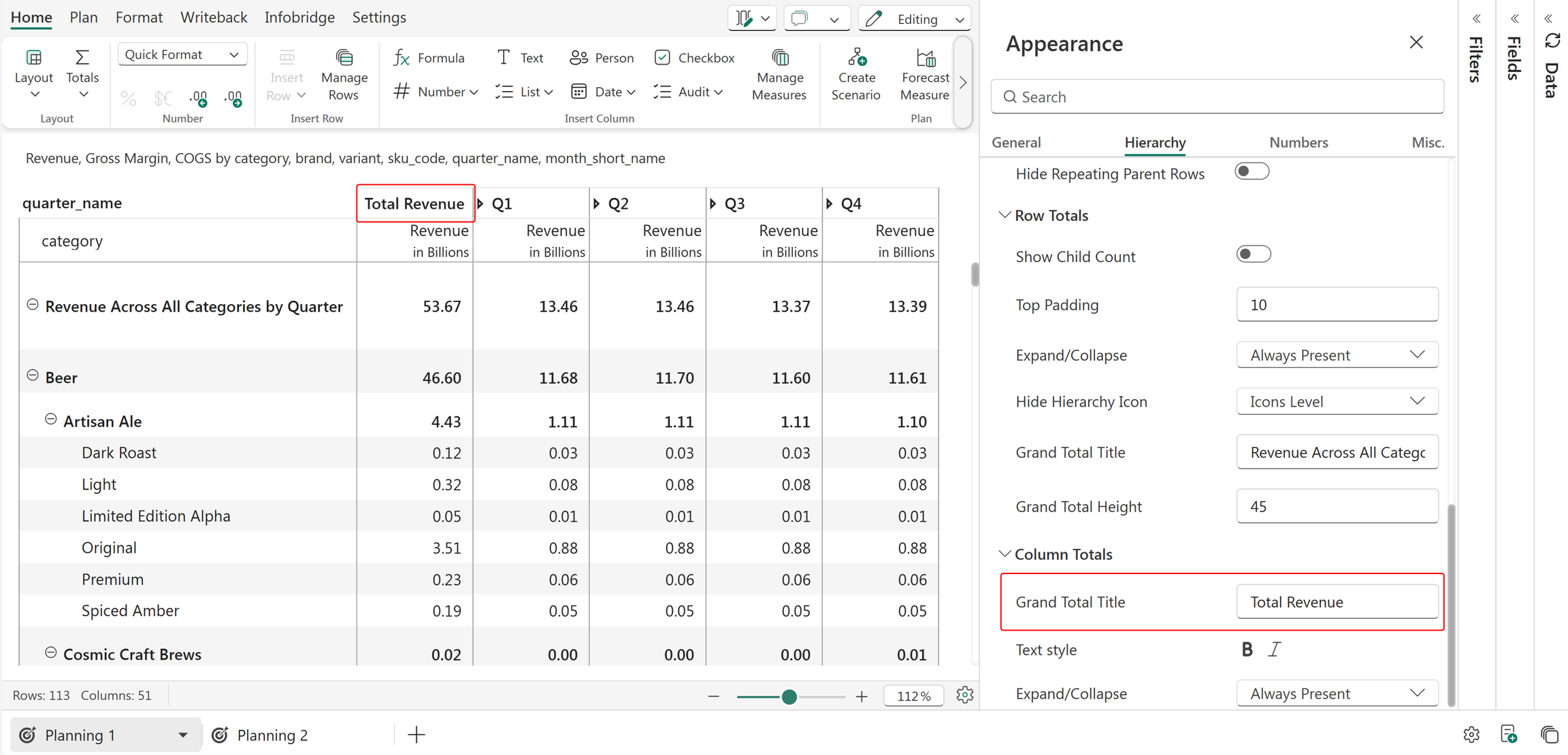

### 7. Column totals With Plan, you can customize the title, style and expand/collapse icons for the column totals. #### 7.1. Grand total title You can set a custom title for column grand total using this option.

Setting custom title for column grand total

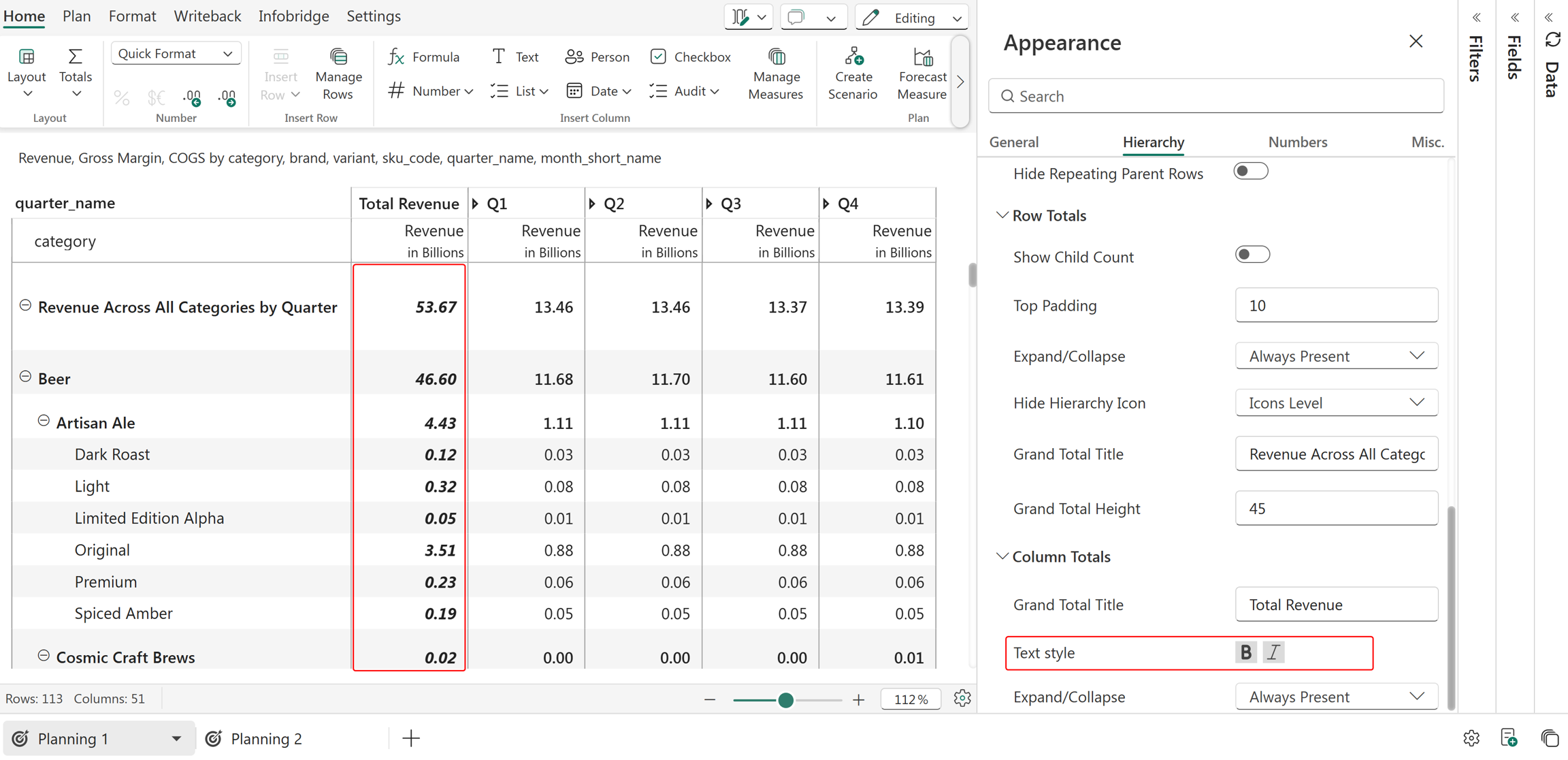

#### 7.2. Text style You can make use this option to customize the style of the grand total column, such as applying bold or italic formatting.

Applying bold & italic style to column grand total column

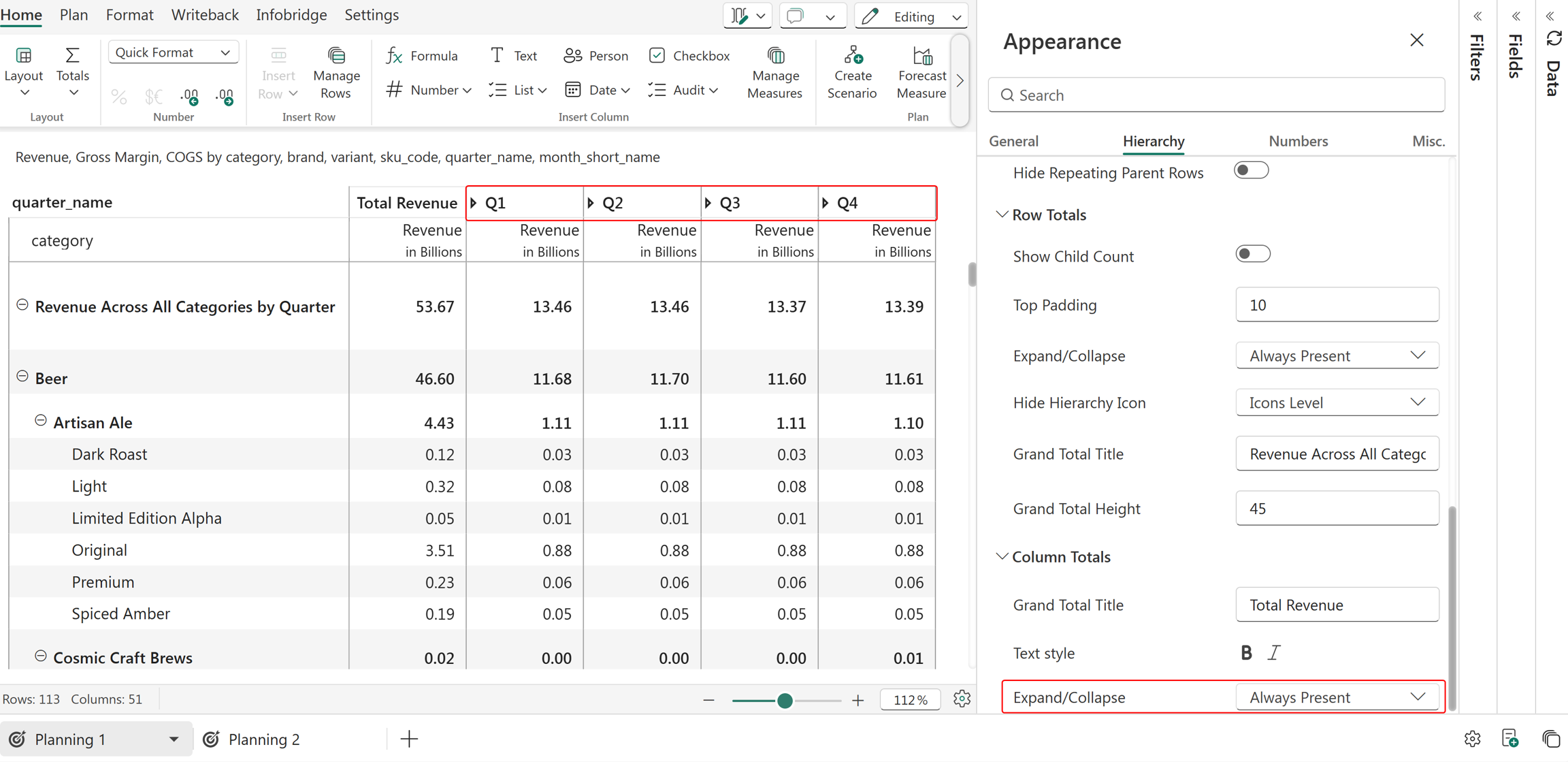

#### 7.3. Expand/collapse Use this option to control when the expand/collapse icons for column hierarchies are displayed. * **Always present** - Expand/collapse icons are always visible. * **Only on hover** - Expand/collapse icons appear only when you hover over the canvas.

Setting expand/collapse icons to be always present for column hierarchies

In this section, we covered the hierarchy display settings. Navigate to the next section to learn more about [advanced number formatting](/display-settings/number-settings.md). --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.fabricplan.com/display-settings/hierarchy-settings.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
